Description

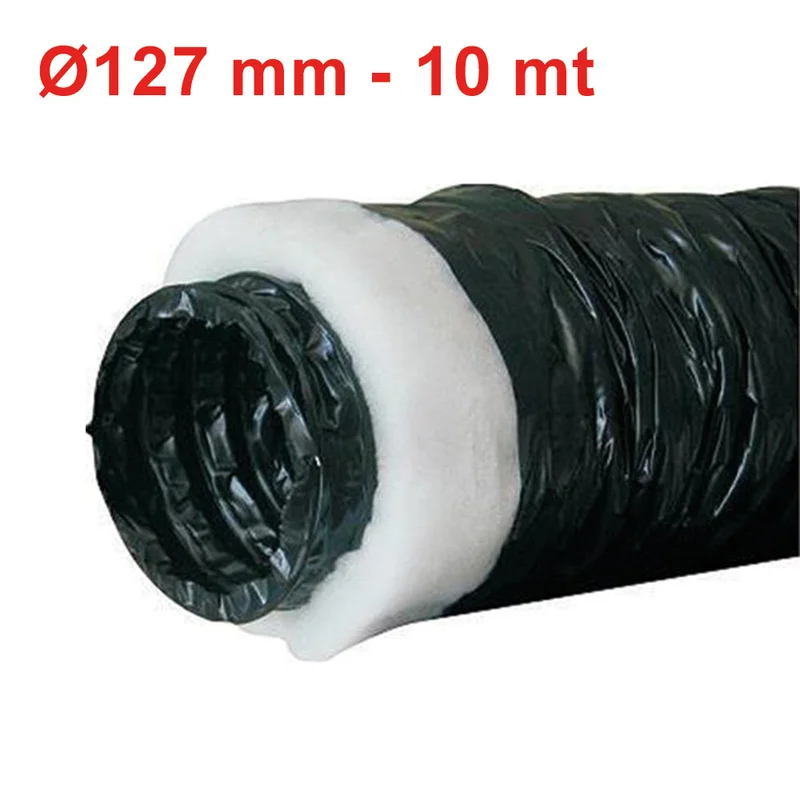

CDTPLTI.127 – FLEXIBLE ANTI-TEAR POLYETHYLENE DUCT WITH 25mm POLYESTER INSULATION
Ø 127 mm – 10 m roll
Features:
Black polyethylene duct with embedded harmonic steel spiral
Polyester insulation with 16 kg/m³ density and 25 mm thickness
Outer duct in black polyethylene
Fire reaction class 1 (D.M. 26/06/84 art. 8)
Certification number CSI/0132/08/RF
Approval PD2229C20D100010
Diameter 127 mm
10 m roll packaging
Operating temperature from -20 °C to +70 °C
Maximum air velocity 30 m/s
Maximum operating pressure 2,000 Pa
F10 THERM
Flexible duct made of additive polyolefin resin film (wall thickness 100 microns) and harmonic steel wire spiral. Thermal insulation in polyester fiber (25 mm / 16 kg/m³). Outer vapor protection in additive polyolefin resin.
Insulation:
25 mm / 16 kg/m³ standard
50 mm / 16 kg/m³ on request
Thermal Resistance at 20°C
R = 0.58 m² K/W (UNI EN 12664:2002)
SPECIFICATIONS
COLOR: Black
LENGTHS: 10 m standard
PRODUCTION DIAMETERS: from 80 to 406 mm
OPERATING TEMPERATURE: -20°C /+90°C (+110°C peaks)
BENDING RADIUS: 0.81.5 x
AIR VELOCITY: max 20 m/sec
PRESSURE: max 200 mm ca
FIRE REACTION
IT CLASS: Class 1 (D.M. 26/06/84)
Approval no.: RE1205C20D100006
EU CLASS:
INNER DUCT AND VAPOR BARRIER: Class B-s1, d0 (EN 13501-1:2009)
INSULATION: Class B-s2, d0
FR CLASS:
INNER DUCT AND VAPOR BARRIER: Class M1 (NF P 92-507:2004)
INSULATION: Class M1 (NF P 92-507:2004)
GREEN BUILDING
Contributes to credits from major international green building rating systems:
LEED: IP, EA, MR
WELL: MATERIALS, COMMUNITY
BREEAM: MAN, ENE, WST
CERTIFICATIONS
Fire reaction
Smoke non-toxicity
Thermal and acoustic absorption
APPLICATIONS
Air conditioning
Single and double flow mechanical ventilation
Reduction of condensation and heat loss
Product code: CDTPLTI.127
