Description

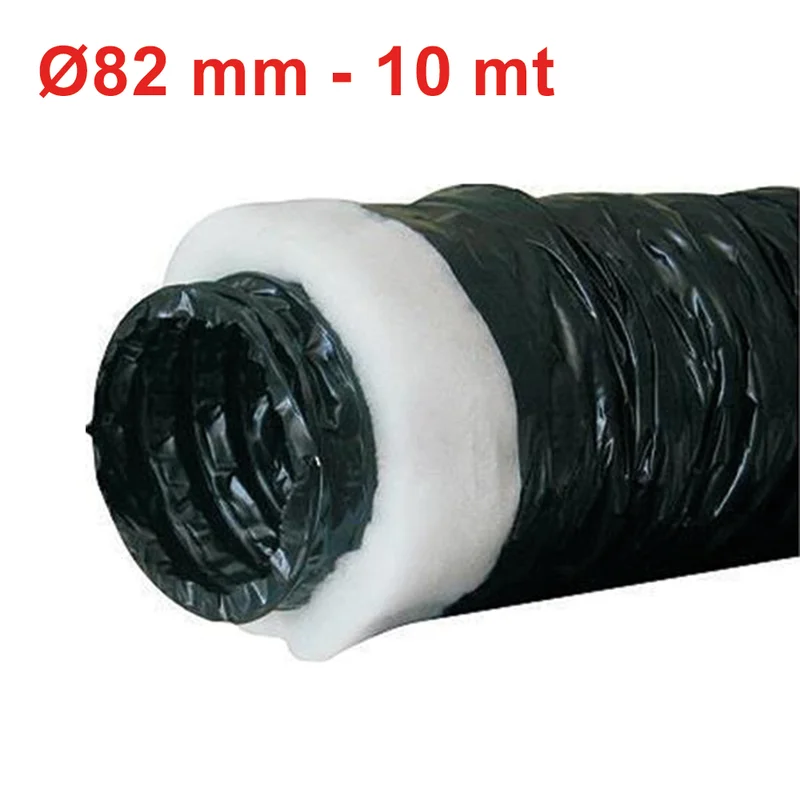

CDTPLTI.82 – FLEXIBLE DUCT in TEAR-RESISTANT POLYETHYLENE
with 25mm POLYESTER INSULATION
Ø 82mm – 10 m roll
Features:
Black polyethylene duct with embedded spring steel wire
Polyester insulation with 16kg/m³ density and 25 mm thickness
Outer duct in black polyethylene
Fire reaction class 1 (D.M. 26/06/84 art.8)
Certification number CSI/0132/08/RF
Approval PD2229C20D100010
Diameter: 82 mm
Available in 10 m length rolls
Operating temperature: -20 °C to +70 °C
Maximum air speed: 30 m/s
Maximum operating pressure: 2,000 Pa
F10 THERM:
Flexible duct made from additive-treated polyolefin resin film (100 micron wall thickness)
Spring steel wire spiral
Thermal insulation in polyester fiber (25mm/16kg/m³)
External vapor barrier in treated polyolefin resin
Insulation:
25mm / 16kg/m³ standard
50mm / 16kg/m³ on request
Thermal Resistance at 20°C:
R = 0.58 m²K/W (UNI EN 12664:2002)
Specifications:
Color: black
Lengths: standard 10 m
Production diameters: from 80 to 406 mm
Operating temperature: -20°C / +90°C (+110°C peak)
Bending radius: 0.81.5 x
Air speed: max 20 m/s
Pressure: max approx. 200 mm
Fire Reaction:
ITALIAN CLASS:
Class 1 (D.M. 26/06/84)
Approval no.: RE1205C20D100006
EU CLASS:
Internal tubing and vapor barrier: Class B-s1, d0 (EN 13501-1:2009)
Thermal insulation mat: Class B-s2, d0
FRENCH CLASS:
Internal tubing and vapor barrier: Class M1 NF P 92-507:2004
Thermal insulation mat: Class M1 NF P 92-507:2004
Green Building:
Contributes to credits in major international building sustainability rating systems:
LEED: IP, EA, MR
WELL: MATERIALS, COMMUNITY
BREEAM: MAN, ENE, WST
Certifications:
Fire reaction
Fume non-toxicity
Thermal and acoustic absorption
Applications:
Air conditioning
Single and double flow mechanical ventilation
Reduction of condensation and heat loss
Product code: CDTPLTI.82
