Description

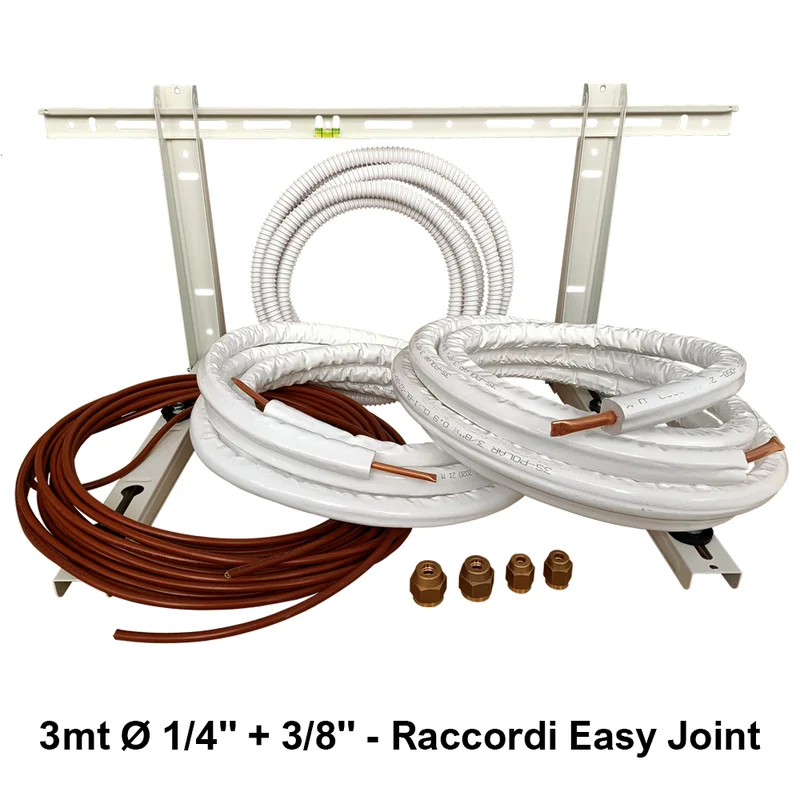

INSTALLATION KIT FOR MONO SPLIT AIR CONDITIONER
3m COPPER TUBE ¼ PRE-INSULATED
2 SELF-SEALING FITTINGS ¼
3m COPPER TUBE 3/8 PRE-INSULATED
2 SELF-SEALING FITTINGS 3/8
3m CONDENSATE DRAIN TUBE
3m FOUR-CORE CABLE 4×1.5
1 WALL BRACKET FOR MONO SPLIT OUTDOOR UNIT
COPPER TUBE CHARACTERISTICS:
Annealed ACR (R220) with mechanical properties, dimensions, tolerances, and eccentricity meeting UNI EN 12735-1 standards.
Suitable for refrigerants R407C and R410A, internally cleaned and dehumidified with inert gas with a maximum overall residue of 0.034 g/m² and sealed ends as per ASTM B280.
Insulation
Cross-linked polyethylene foam with the following technical values:
Thermal conductivity at 40°C 0.040 W/m*K
Water vapor diffusion resistance factor (anti-condensation) 10000
Fire reaction class 1
Operating temperature -80°/+120°C
CFC-free
External coating in extruded polyethylene (LDPE) color white, flame retardant additive, adherent to the foam to ensure high anti-condensation performance, excellent abrasion, and tear resistance.
BRACKET CHARACTERISTICS:
Load capacity 80 kg
2 safety stops to prevent detachment
Includes a level bubble
2 anti-vibration pads to place between the brackets and the wall
3 wall plugs with screws and washers
4 anti-vibration feet to place between the air conditioner and the brackets for perfect soundproofing
SELF-SEALING FITTING CHARACTERISTICS:
The metal seal and operating pressure up to 140 bar make this product particularly suitable for refrigeration and conditioning systems using new low environmental impact refrigerants for connecting tubes, valves, tanks, and general line components.
The biting ring acts like a clamp on the outer surface of the tube to resist pressure and provide an effective seal.
Characteristics:
Fluid temperature: -40°C to +150°C
Maximum working pressure: 140 bar
Compatible with traditional 45° collar fittings
No need to calibrate or collar the tube end, or tighten with a torque wrench
Approvals:
CE (PED, RoHS, REACH), EAC
Superior performance to DIN 8912 and SAE J513 standards for traditional 45° collar fittings
Patented system
CONDENSATE DRAIN TUBE CHARACTERISTICS:
For concealed or ducted installations
Anti-UV HD polyethylene
ELECTRICAL CABLE CHARACTERISTICS:
Four-core cable for 220V single-phase power supply to air conditioners
Product code: KI.3.1/4-3/8
