Description

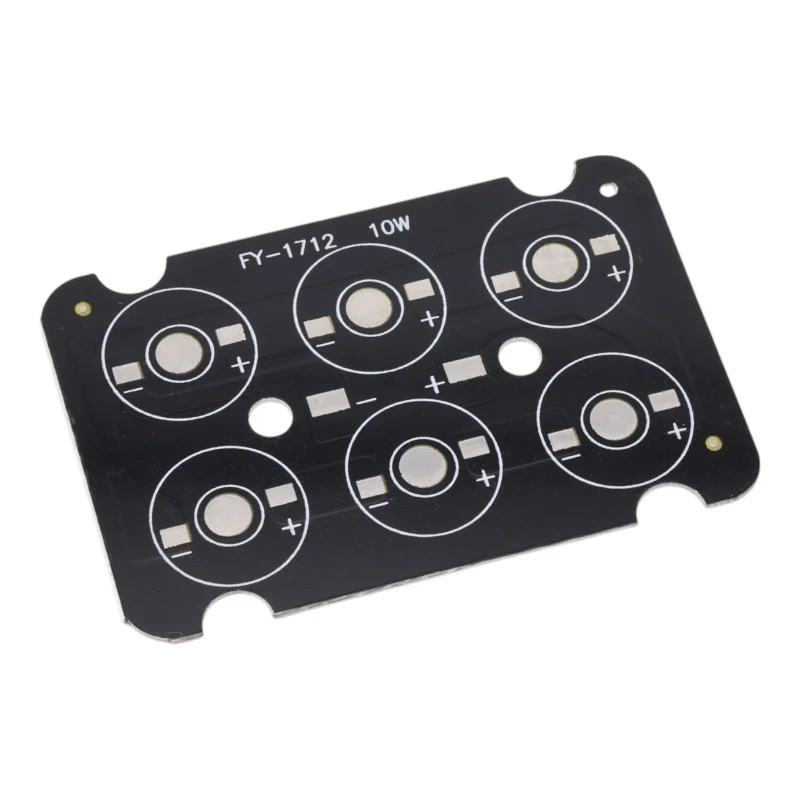

This aluminum plate is designed for mounting up to 6 high-power SMD LEDs 1W/3W connected in series. Thanks to the high-quality aluminum core, it ensures effective heat dissipation and long service life of the connected LED chips. Ideal for designing your own LED fixtures, spotlights or light panels.
Technical specifications
Type: Aluminum plate for 6 LEDs
Material: Aluminum PCB (MCPCB)
Number of positions: 6 × 1 W / 3 W LED
Connection: Serial
Dimensions: 86 mm (length) × 59 mm (width)
Color: Black surface with + and markings
Maximum power: 10W
Compatibility: SMD LED 1 W / 3 W
Functions and features
Efficient cooling thanks to aluminum core
Clear marking of + / poles for easy installation
Precise distribution of 6 LED positions for even illumination
Universal hole spacing for mounting in reflectors or brackets
Suitable for direct soldering of LEDs without an intermediate board
Ideal for
DIY production of LED lamps and spotlights
Lighting of work areas, aquariums or display cases
Laboratory and technical projects with power LEDs
Replacement or service applications of LED modules
Package contents
1 × Aluminum PCB board for 6 LEDs (LED not included)
Why choose this product?
High quality and long service life thanks to the aluminum core
Easy to install and compatible with common power LEDs
Ideal solution for efficient cooling and stable LED operation
Good price/performance ratio for do-it-yourself projects
