Description

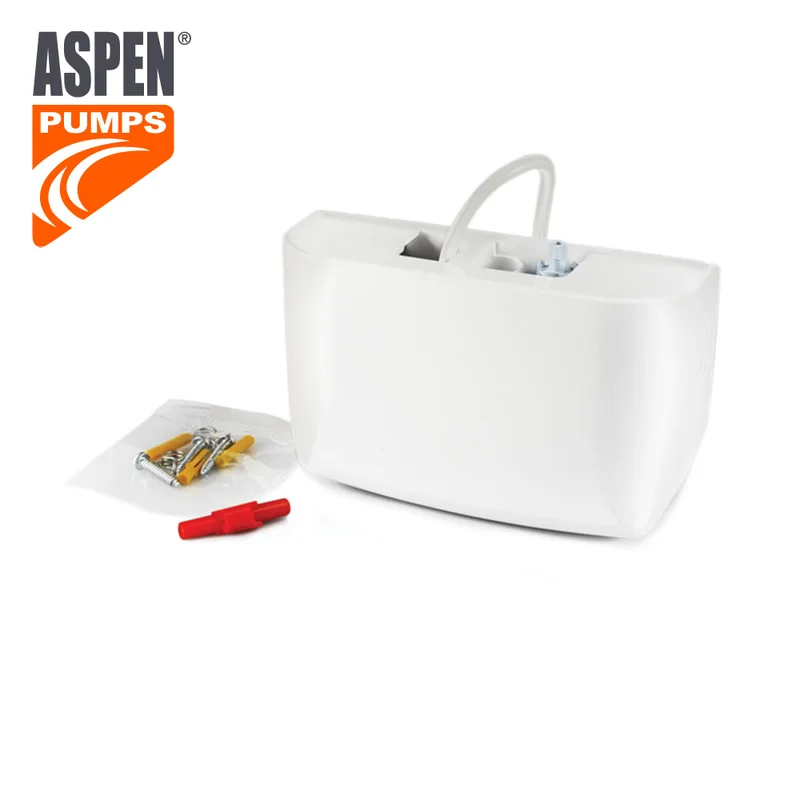

FP1080/2 – CONDENSATE COLLECTING PUMP
ASPEN mini blanc
for split air conditioners
Characteristics:
Dimensions: 115mm x 182mm x 55mm
Weight: 0.46 kg
Power supply voltage: 220/240 V AC < 11W - Single-phase 50/60 Hz
Alarm cables free of voltage – 3A – Contact available N/C 5A inductive at 220/240V AC
Pre-wired power supply cable included
Inlet hole: 21mm internal diameter
Discharge pipe: 6mm internal diameter
Water level sensor with Hall effect semiconductor and high-level safety system
Internal filter of 70 microns, washable and replaceable (Sanii cante tablet included)
Max discharge water temperature: 40°C
Overheating stop protection
Internal electronics coated in resin to protect against water ingress
Supplied with wall mounting template
The pump can operate continuously
Certified and CE marked
Equipment in Class 2
Recommended maximum vertical lift: 4 meters
Water flow: 6 liters/hour with zero lift
Noise level: 18 dB(A) with lift greater than 1 meter
Product code: FP1080/2
Discharge hose diameter: 6mm – use tube LGTU03
