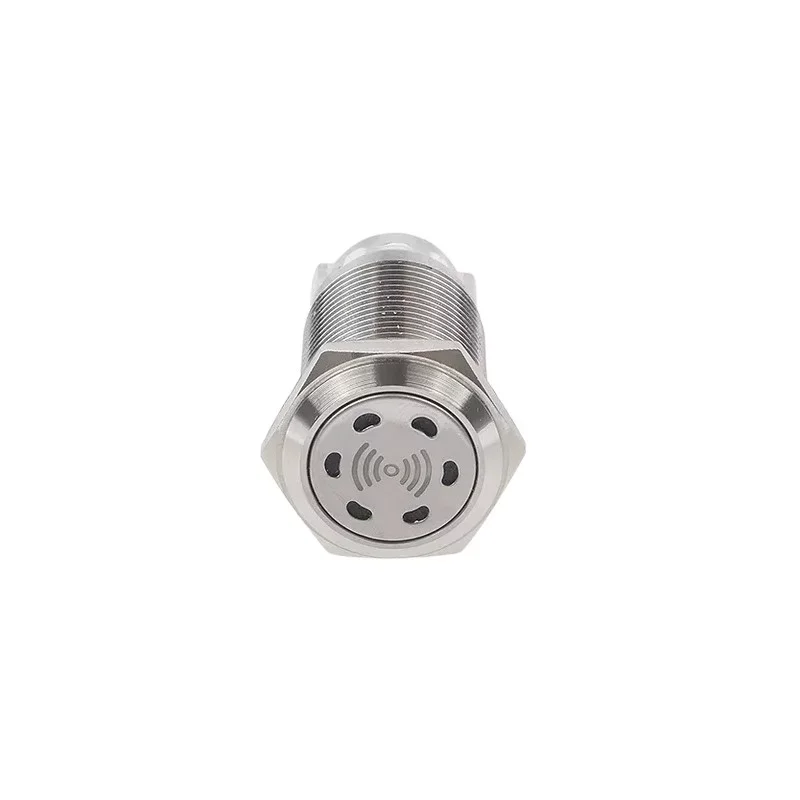

Description
The metal buzzer with integrated LED indicator in the design for a 16 mm mounting hole is designed for acoustic and optical signaling in industrial switchboards, control panels and compact devices. Thanks to the stainless steel body and IP65 protection, it is also suitable for demanding environments with dust and moisture. The intermittent sound tone in combination with LED signaling provides a clear and immediate notification of the device status.
Technical specifications
Operating voltage: 12 V DC, 24 V DC, 230 V AC (depending on the selected variant)
Maximum current: 20 mA
Buzzer volume (at a distance of 10 cm): 85 dB
Tone frequency: 2500 Hz
Audible signal: intermittent tone
LED color: red
Front diameter: 18 mm
Total length: 35 mm
Mounting hole diameter: 16 mm
Thread: M16 × 1
Weight: 42g
Body material: stainless steel
Protection: IP65
Operating temperature: 25 °C to +80 °C
Terminals: screw terminal block
Functions and features
Combination of acoustic and optical signaling in one element
All-metal design made of stainless steel with high mechanical resistance
Intermittent audible tone for a clear warning signal
LED indicator for clear visual status indication
Sealed construction suitable for dusty and humid environments
Compact dimensions suitable for panels with limited space
Easy panel mounting using a Ø 16 mm hole
Ideal for
Compact industrial control cabinets
Machine control and signaling panels
Warning and fault signaling
Automation and control systems
Applications requiring high protection IP65
Package contents
Metal buzzer with LED indicator
Mounting nuts for panel mounting
Sealing element to ensure IP65 protection
Why choose this product?
Durable stainless steel design with long service life
Reliable combination of sound and light signaling
High IP65 protection for demanding operating conditions
Small mounting hole Ø 16 mm saves space in the panel
Suitable for professional industrial use
