Description

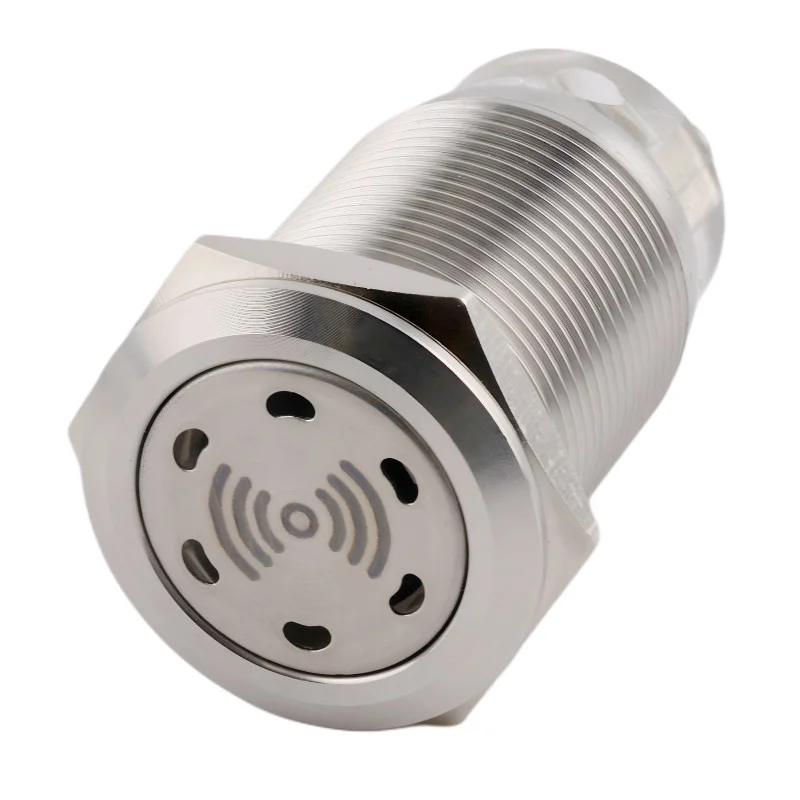

The metal buzzer with integrated LED indicator is designed for acoustic and optical signaling in industrial applications, switchboards and control panels. Thanks to the all-metal stainless steel design and IP65 protection, it is also suitable for demanding environments with dust and moisture. The intermittent sound tone in combination with the red LED ensures immediate and easily recognizable status signaling.
Technical specifications
Operating voltage: 12 V DC, 24 V DC, 230 V AC (depending on the selected variant)
Maximum current: 20 mA
Buzzer volume (at a distance of 10 cm): 85 dB
Tone frequency: 2500 Hz
Audible signal: intermittent tone
LED color: red
Front diameter: 22 mm
Total length: 35 mm
Mounting hole diameter: 19 mm
Thread: M19 × 1
Weight: 48g
Body material: stainless steel
Protection: IP65
Operating temperature: 25 °C to +80 °C
Terminals: screw terminal block
Functions and features
Combination of acoustic and optical signaling in one element
All-metal design ensuring high mechanical resistance
Intermittent audible tone for better recognition of alarm conditions
Red LED for clear visual indication
Sealed design suitable for dusty and humid environments
Easy panel mounting using a Ø 19 mm hole
Secure wire connection using screw terminals
Ideal for
Industrial switchboards and control panels
Machinery and production technology
Warning and fault signaling
Automation and control systems
Outdoor and harsh industrial environments
Package contents
Metal buzzer with LED indicator
Why choose this product?
Durable stainless steel design with long service life
Reliable light and sound signaling
High IP65 protection for harsh conditions
Compact dimensions and standard mounting hole Ø 19 mm
Suitable for professional industrial applications
