Description

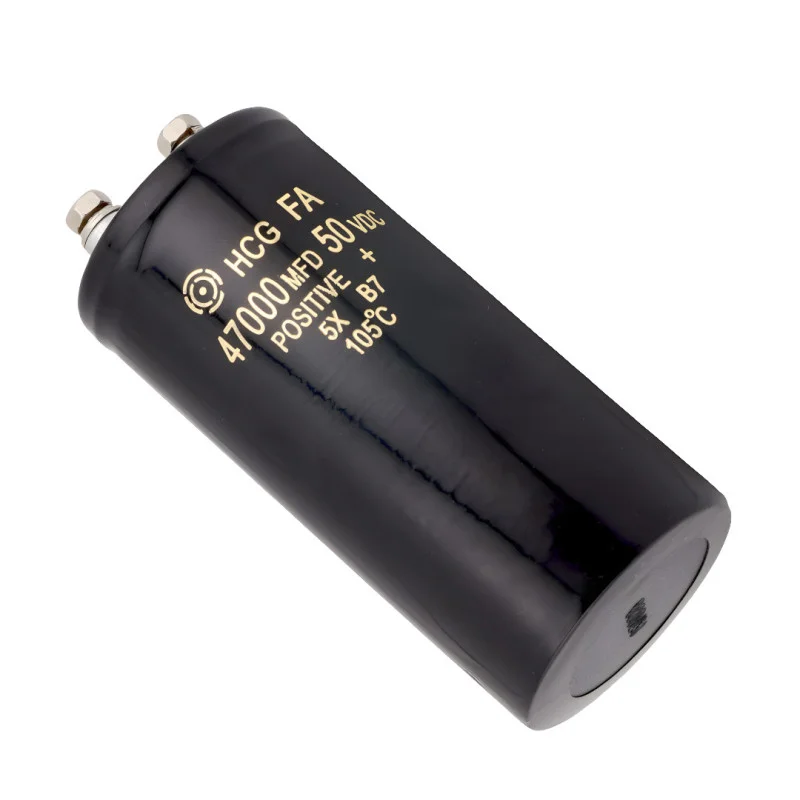

High-performance aluminum electrolytic capacitor with a capacity of 47,000 µF and a nominal voltage of 50 V for smoothing and voltage stabilization in power supplies, audio amplifiers and industrial applications. Thanks to its large capacity and robust screw terminals, it provides reliable operation even at high current peaks.
Technical specifications
Capacity: 47,000 µF
Rated voltage: 50 V DC
Capacitance tolerance: ±20% (typ.)
Type: Aluminum electrolytic capacitor
Design: Radial / THT, screw terminals
Operating temperature: 40 +105 °C
Polarity: marked (positive pole)
Dimensions: 50 mm × height 105 mm
Weight: 200g
Protection: IP20 (intended for installation in a closed device)
Shell color: black
Package: Through-Hole (clamp/bracket recommended for mounting)
Functions and features
Very high capacity effective smoothing and reduction of ripple at the power supply output
Low ESR (typ.) and ability to carry high pulse currents
Screw terminals for safe and low-loss connections
Resistance up to +105 °C for reliable long-term operation
Suitable for parallel/series connection when following the balancing rules
Ideal for
Filter elements for power supplies and switching power supplies
Audio amplifiers (main smoothing capacitor)
Inverters, DC motors and industrial control systems
Laboratory supplies and repair applications
Package contents
1× electrolytic capacitor 50 V 47,000 µF (50×105 mm)
Why choose this product?
Combining high capacity, robust construction and easy connection via screw terminals, it is ideal where a stable and clean power supply with minimal ripple and a margin for current peaks is needed – in audio, industry and power supply development.
