Castel replacement coil for 24V AC solenoid valves-Spedizione veloce

Description

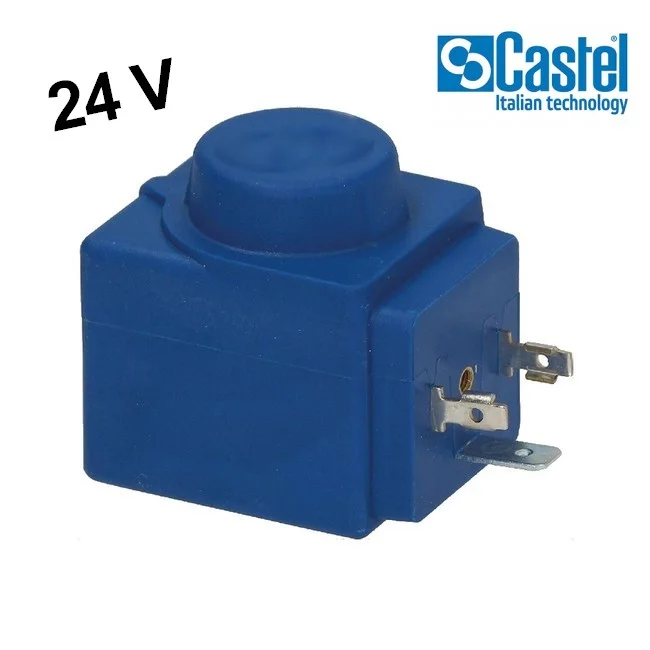

9300/RA2 – replacement coil for water and air solenoid valve
24 v for normally closed castel solenoid valves

description:
the 9300/RA2 series coils must be powered with alternating current.
these coils are only suitable for normally closed valves.
the connection terminals consist of three fast-on connectors, two for the line and one for ground.
all coils comply with the low voltage directive 2006/95/EC and the electromagnetic compatibility directive 2004/108/EC.

technical features:

coil type: HF2

power supply: 24 V 50/60 Hz

output power: 8 watt

operating temperature: -20 +50° C

protection rating: IP65

product code: 9300/RA2
