Smart cold room control panel with cloud app Elitech CoolRobot 1 Description:

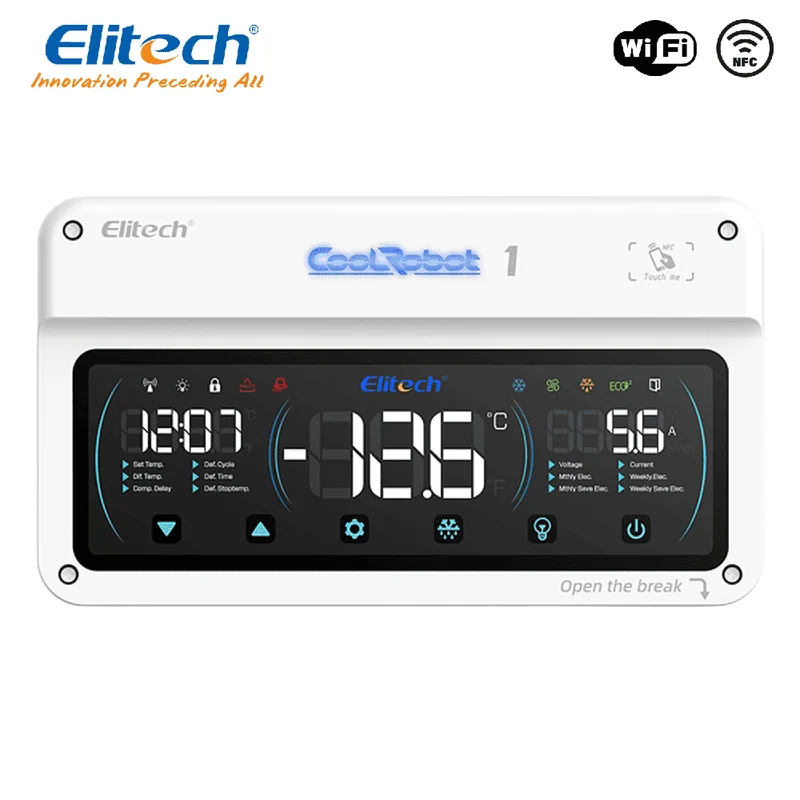

The Elitech CoolRobot 1 SCR-1 Smart Cloud Control Box is an intelligent electronic control panel for cold rooms, designed to improve the efficiency, management and connectivity of refrigeration systems. It is part of the CoolRobot-1 series by Elitech, a leading company in the development of advanced solutions for temperature control and remote monitoring of cold rooms.
Thanks to integration with the Smart Cloud App, CoolRobot 1 allows remote control and monitoring of the cold room via Wi-Fi network or Internet, offering full management of operating parameters directly from a smartphone or cloud platform. This control panel supports NFC (Near Field Communication) configuration for quick and intuitive parameter setup, reducing installation and commissioning times.
Designed for commercial and industrial applications, CoolRobot 1 ensures reliable performance, with precise temperature management, energy monitoring and OTA (Over-The-Air) firmware updates directly through the app. This makes it possible to keep the system always updated and benefit from efficient after-sales service.
Features:
Intelligent electronic control panel for small and medium-sized cold rooms.
Smart Cloud App for remote monitoring and management of operating parameters.
Quick configuration via NFC.
Intuitive display with real-time status indicators.
Energy monitoring for greater efficiency.
Firmware update support via app (OTA).
Ideal for refrigeration, defrosting, ventilation and overall cold room control.
Technical specifications:
Power supply voltage: 220 VAC ± 10%, 50/60 Hz
Power consumption: < 9 W
Operating temperature: -10 °C ~ +65 °C
Storage temperature: -20 °C ~ +75 °C
Temperature measurement range: -50 °C ~ +99.9 °C
Temperature measurement accuracy: ± 1 °C from -20 °C to +50 °C; ± 1.5 °C beyond
Temperature control range: -49.9 °C ~ +99.9 °C
Temperature resolution: 0.1 °C
Current measurement range: 0 A ~ 20 A
Current measurement accuracy: ± 0.5 A
Sensor type: NTC probe with sealed plastic (10 K/25 °C, B = 3435 K)
Sensor cable length: 2 m (probes included)
Main output control capacity:
COMP (compressor): up to 4 HP
DEF (defrost): 30 A
FAN (fan): 20 A
Additional notes:
In addition to the electrical and temperature specifications, this control panel supports advanced features such as quick setup via NFC, remote monitoring through the Smart Cloud App, OTA (Over-The-Air) firmware updates and real-time energy management, making it ideal for smart cold rooms with remote control and diagnostics.
Product code: SCR-1
