Description

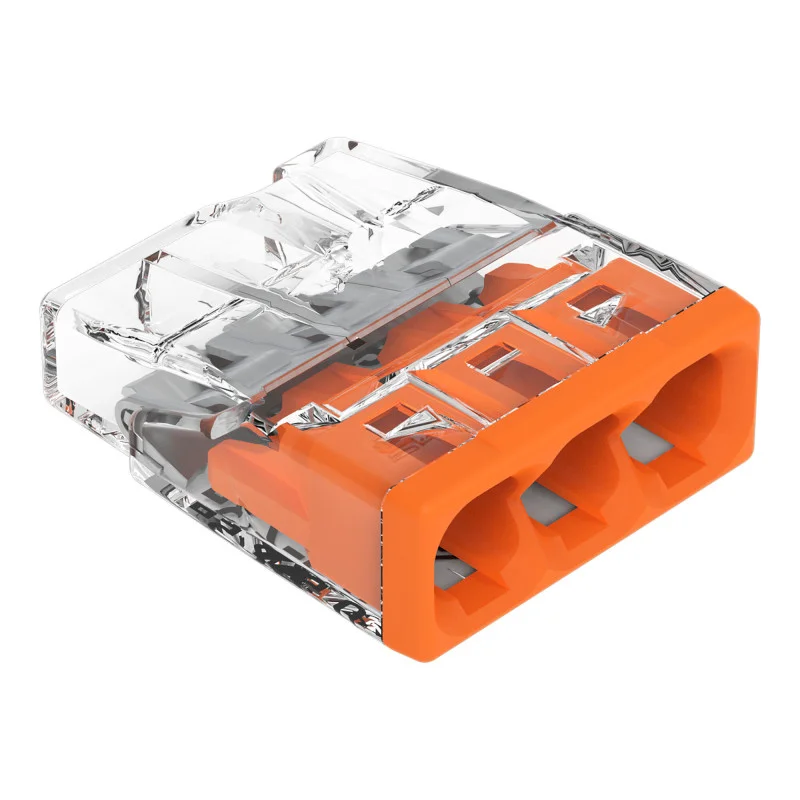

The WAGO 2273-203 is a compact 3-way connector for connecting solid copper conductors in junction boxes and other electrical installation applications. The push-in design allows for quick and direct insertion of the conductor without screwing. The transparent body makes it easy to visually inspect the conductor insertion.
Technical specifications
Manufacturer: WAGO
Model: 2273-203
Series: 2273 COMPACT PUSH WIRE
Product type: junction box connector
Number of trips: 3
Rated current: 24 A
Rated voltage: 450 V
Wire cross-section: 2.5 mm2
Wire size: 16 AWG, 20 AWG
Mounting type: cable
Termination type: push-in wire
Contact material: copper
Color: orange, clear
Maximum operating temperature: 60 °C
Encapsulated: yes
Insured: no
Hazardous area certification: no
Functions and features
Compact design for use in installation and distribution boxes.
Push-in conductor connection without screw terminals.
Transparent housing for checking correct insertion of the wire.
3 separate inputs for connecting three wires.
Insulated connector body for electrical installation.
Ideal for
Connecting wires in domestic and industrial electrical installations.
For use in junction and installation boxes.
Quick and clear connection of solid copper conductors.
Package contents
WAGO 2273-203 connector
Why choose this product?
Clearly identified WAGO catalog number 2273-203.
Compact design suitable for limited installation space.
The transparent body allows visual inspection of the wire connection.
The push-in connection method simplifies assembly without screw connections.
The technical parameters of 24 A and 450 V correspond to use in electrical installations within the scope of the product’s intended use.
Installation and operating instructions
Designed for conductors in the range and design corresponding to the product specification.
Before inserting the wire, it is necessary to properly strip the insulation and check that the wire end is undamaged.
After connection, it is advisable to visually verify the position of the wire through the transparent connector body.
Carry out the installation only in accordance with the rules for electrical installations and with regard to the rated voltage and current of the product.
Safety notice
The product is intended for electrical installations; incorrect connection may result in electric shock, short circuit or overheating of the connection.
The circuit must be disconnected from power before assembly or disassembly.
Installation at 450 V may only be carried out by a person with appropriate professional qualifications.
Do not exceed the product’s rated electrical and temperature parameters.
Do not use a damaged connector or wires with damaged insulation or unsuitable design.
