Description

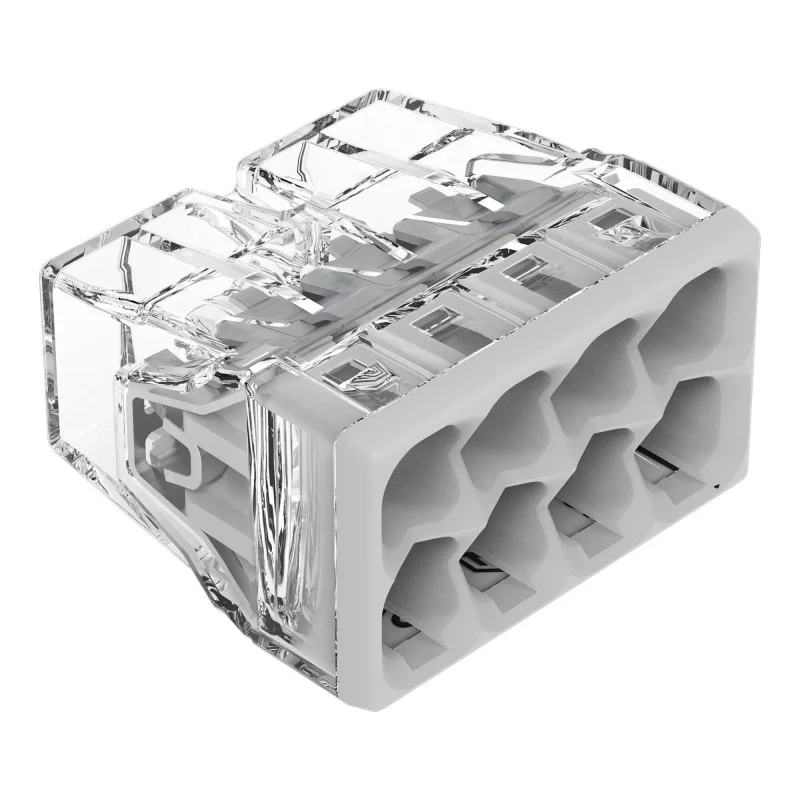

The WAGO 2273-208 installation connection terminal is used for quick connection of wires in electrical installations using the push-in method. It is intended for solid wires and is used in distribution and installation boxes where a compact solution with multiple connection points is required.
Technical specifications
Model: WAGO 2273-208
Series: 2273
Type: PUSH WIRE installation connection terminal
Number of connection points: 8
Connection technology: push-in
Designed for solid conductors
Nominal conductor cross-section: up to 2.5 mm2
Range of connectable wires: 0.5 to 2.5 mm2
Stripping length: 11 mm
Rated voltage: 450 V
Rated current: 24 A
Case color: transparent
Housing color: light gray
Insulation material: polycarbonate
Contact material: electrolytic copper
Contact surface: tin
Clamping spring material: chrome-nickel spring steel
Flammability class according to UL94: V2
Dimensions: 18 x 10.4 x 16.7 mm
Weight: 2.2g
Maximum ambient temperature: 60 °C
Temperature designation according to EN 60998: T60
Functions and features
The compact transparent body allows visual inspection of the wire insertion.
The push-in design allows direct insertion of a solid conductor without a control lever.
Eight separate inputs are designed for connecting wires at one potential.
The contact surfaces are surface-treated with tin.
The terminal is intended for use in fixed electrical installations.
Ideal for
Connecting fixed wires in domestic and industrial electrical installations.
Installation in installation and distribution boxes.
Branching of one potential into multiple conductors.
Lighting, sockets and other fixed wiring in buildings.
Package contents
1x WAGO 2273-208 installation connection terminal
Why choose this product?
A clearly defined number of eight connection points for connecting multiple wires in one node.
The compact design makes it easy to install in limited space.
The transparent housing allows you to check the correct insertion of the wire.
Technical parameters and model designations are publicly available in WAGO product documentation.
Installation and operating instructions
Use only with conductors within the specified cross-section range and of the appropriate type.
Maintain a stripping length of 11 mm.
Before inserting, the wire must be straight, undamaged and free of dirt.
The terminal is intended for fixed installation in a suitable electrical space, for example in an installation box.
Installation and connection must be carried out with the power disconnected.
Safety notice
The product is intended for electrical installations; incorrect wiring may lead to short circuits, overheating or electric shock.
Work on electrical equipment may only be carried out by a person with appropriate professional qualifications.
Do not exceed electrical ratings and use only compatible wires.
Do not use after mechanical damage to the terminal or if the conductor is damaged.
After installation, check the correct insertion of the wires and the strength of the connection.
