Description
Product Type Features

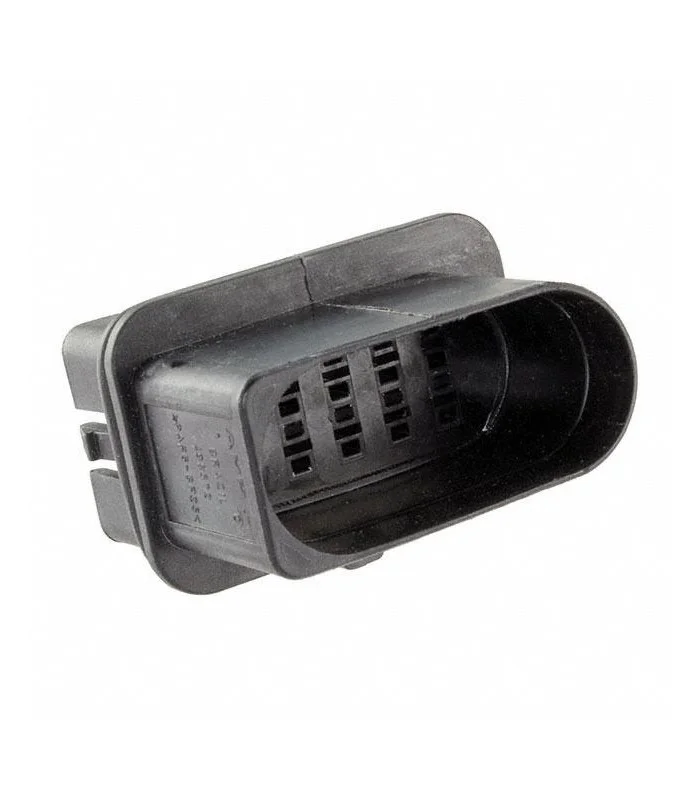

-Connector Style: Housing for male terminals
-Connector System: Wire-to-Board, Wire-to-Device
-Sealable: Yes
-Hybrid Connector: No
-Primary Locking Feature: On the Terminal
-Strain Relief: No
-Row-to-Row Spacing: 6mm[.236in]
Configuration Features
-Number of Positions: 10
-Number of Rows: 2
Electrical Characteristics
-Nominal Voltage Architecture(V): 12
-Operating Voltage(VDC): 12
Body Features
-Color: Black
-Cable Exit Angle: 180°
-Body Material: PA GF
Contact Features
-Mating Tab Width: 2.8mm[.11in]
Mechanical Attachment
-Mounting Feature: Without
-Terminal Position Assurance: Yes
-Polarized: Yes
Housing Features
-Centerline (Pitch): 6mm[.236in]
Dimensions
-Width: 42mm[1.653in]
-Height: 32.4mm[1.276in]
-Length: 46.2mm[1.819in]
Usage Conditions
-Operating Temperature Range: -40 130°C[-40 266°F]
Operation/Application
-Circuit Application: Signal
Industry Standards
-UL Flammability Rating: UL 94-HB
