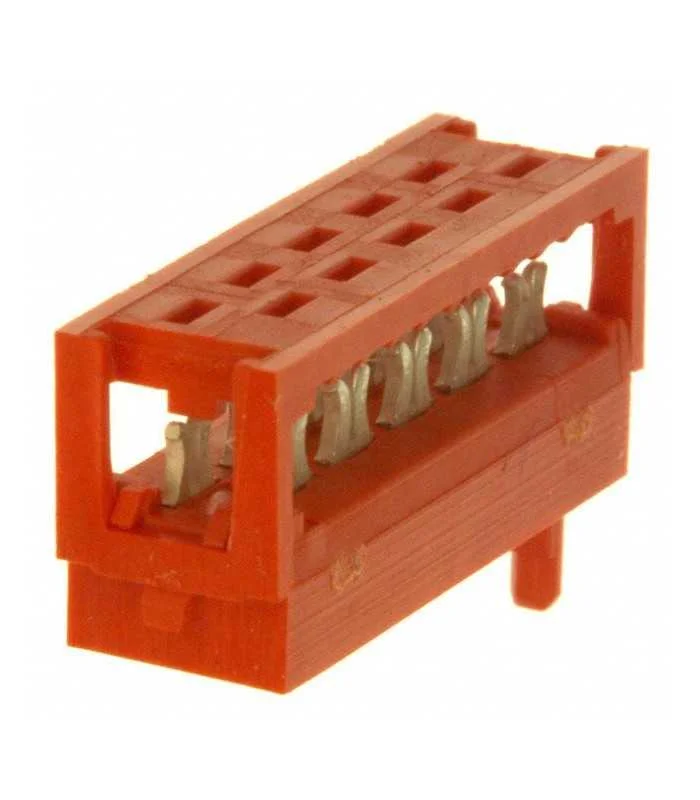

Description
Mounting Orientation: Vertical
Shrouded: Yes
Connector: Style Plug
Profile: Low
Applies To: Cable
Product Type: Connector
Board Standoff: Without
Connector Type: Connector Assembly
Wire/Cable Type: Ribbon Cable
Connector System: Wire-to-Board
Ejection Latches: Without
Configuration Features
Number of Positions: 10
Electrical Characteristics
Insulation Resistance?(MO): 1000
Operating Voltage?(VDC): 100
Body Features
Header Type: Pin Header
Daisy Chain: Without
Contact Features
Contact Mating Area Plating Material: Tin
Contact Design: Dual Beam
Contact Transmits (Typical): Signal (Data)
Solder Tail Contact Plating Material: Tin
Contact Current Rating?(A): 1.5
Contact Base Material: Phosphor Bronze
Contact Type: Pin
Contact Termination Area Plating Material: Gold
Termination Features
Termination Method to PC Board: Through Hole
Mechanical Attachment
PCB Mount Retention: Without
Mating Alignment Type: Polarization
