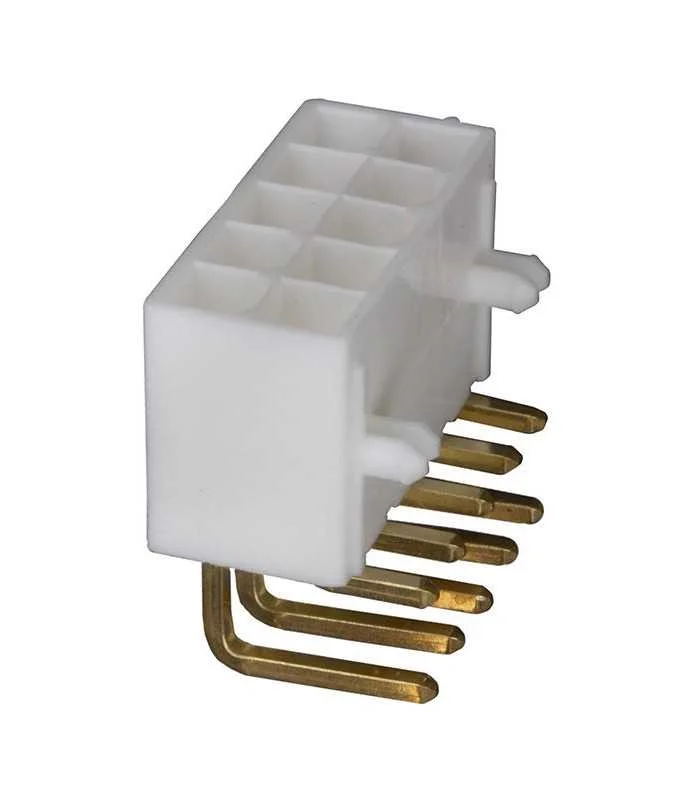

Description
Series: Mini-Fit Jr
Gender: Plug
No. of Contacts: 10
No. of Rows: 2
Pitch Spacing: 4.2mm
Contact Gender: –
Connector Mounting: PCB
Connector Shell Size: –
Contact Termination Type: Through Hole
Contact Material: Brass
Contact Plating: Tin
Approval Bodies: CSA, UL
Connector Type: Rectangular Power
Contact Resistance: 10mohm
Contact Termination: Through Hole Right Angle
Current rating: 9A
Dielectric Strength: 1500V/m
Flammability rating: UL94V-2
Material: Clear nylon
No. of Mating Cycles: 30
No. of Poles: 10
Operating Temperature Max: 105°C
Operating Temperature Min: -40°C
Voltage Rating V AC: 600V
Working Voltage: 600V
