Description

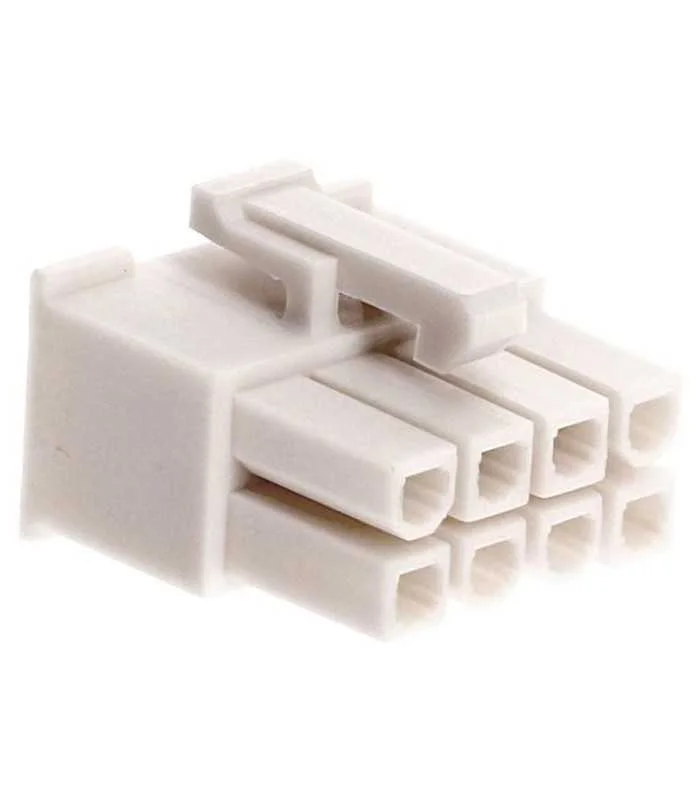

Product Name: Mini-Fit Jr
Series: 5557
Breakaway: No
Circuits (maximum): 8
Color – Resin: Natural
Flammability: 94V-0
Gender: Receptacle
Glow-Wire Capable: No
Material – Resin: Nylon
Number of Rows: 2
Panel Mount: No
Pitch – Mating Interface: 4.20mm
Pitch – Termination Interface: 4.20mm
Polarized to Mating Part: Yes
Stackable: No
Temperature Range – Operating: -40° to +105°C
Current – Maximum per Contact: 13.0A
Working Voltage: 600V
