Description
Product Type Features

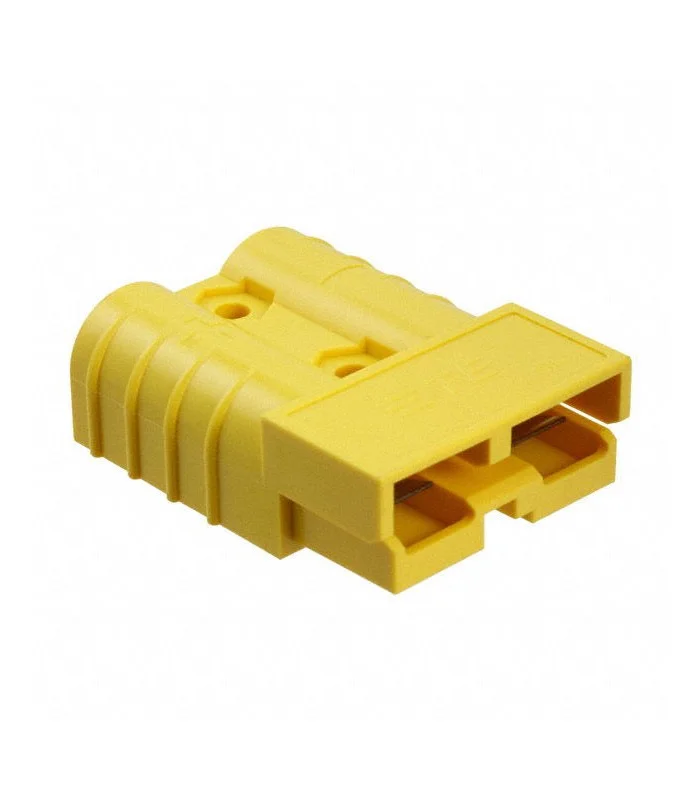

Product Type: Housing
Housing Type: Plug/Receptacle
Configuration Features
Number of Positions: 2
Electrical Characteristics
Operating Voltage (VAC): 600
Operating Voltage (VDC): 600
Termination Features
Wire/Cable Size (AWG): 12 6
Wire/Cable Size (mm²): 3.085 14
Wire/Cable Size (CMA): 6088 27629
Wire Type: Stranded
Wire/Cable Type: Discrete Wire
Mechanical Attachment
Panel Mount Retention: Without
Housing Features
UL Flammability Rating: UL 94V-0
Housing Color: Yellow
Housing Material: Polycarbonate
Dimensions
Length: 48.23 mm [ 1.9 in ]
Height: 15.88 mm [ .625 in ]
Accepts Wire Insulation Diameter Range: 10 mm [ .394 in ]
Width: 35.05 mm [ 1.38 in ]
Usage Conditions
Sealed Condition: Not Sealed
Operation/Application
Connector System: Wire-to-Wire
Applies To: Wire/Cable
Circuit Application: Power
Industry Standards
UL Rating: Recognized
Agency/Standard: UL
Agency/Standard Number: E28476
