Description
Product Type Features

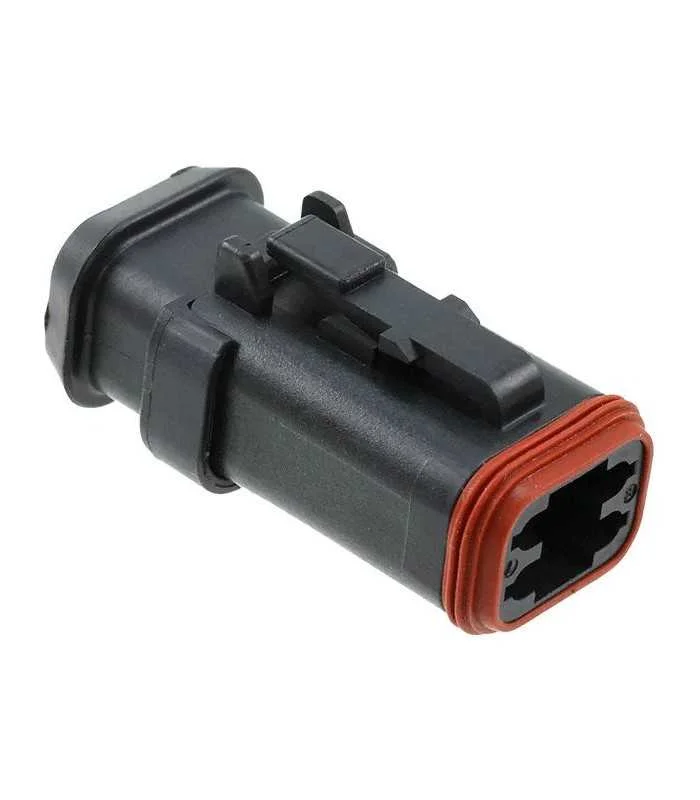

– Connector & Housing Type: Housing for Female Terminals
– Connector System: Wire-to-Wire
– Sealable: Yes
– Hybrid Connector: No
– Primary Locking Feature: Integrated in Housing
– Connector & Contact Terminates To: Wire & Cable
– Strain Relief: Add By Accessory
– Row-to-Row Spacing: 9.12 mm [ .359 in ]
Configuration Features
– Number of Positions: 4
– Number of Rows: 2
– Blank Cavity Position: 0
Electrical Characteristics
– Nominal Voltage Architecture (V): 12, 24, 48
– Operating Voltage (VAC): 250
– Operating Voltage (VDC): 250
Body Features
– Primary Product Color: Black
– Cable Exit Angle: 180°
– Body Material: PA GF
Contact Features
– Mating Pin Diameter: 1.59 mm [ .0625 in ]
– Contact Current Rating (Max) (A): 13
Mechanical Attachment
– Mounting Feature: Without
– Terminal Position Assurance: Yes
– Polarized: Yes
Housing Features
– Centerline (Pitch): 4.45 mm [ .175 in ]
Dimensions
– Width: 20.88 mm [ .814 in ]
– Height: 19.63 mm [ .773 in ]
– Length: 43.21 mm [ 1.701 in ]
Usage Conditions
– Operating Temperature (Max): 125 °C [ 257 °F ]
– Operating Temperature Range: -55 125 °C [ -67 257 °F ]
Operation/Application
– Circuit Application: Power & Signal
Industry Standards
– Degree of Protection: IP68, IP6K9K
– UL Flammability Rating: 12mm Flame Test per Standard UL-94
– Agency/Standard: SAE J2030
Other
– Connector Position Assurance Capable: No
– Serviceable: Yes
