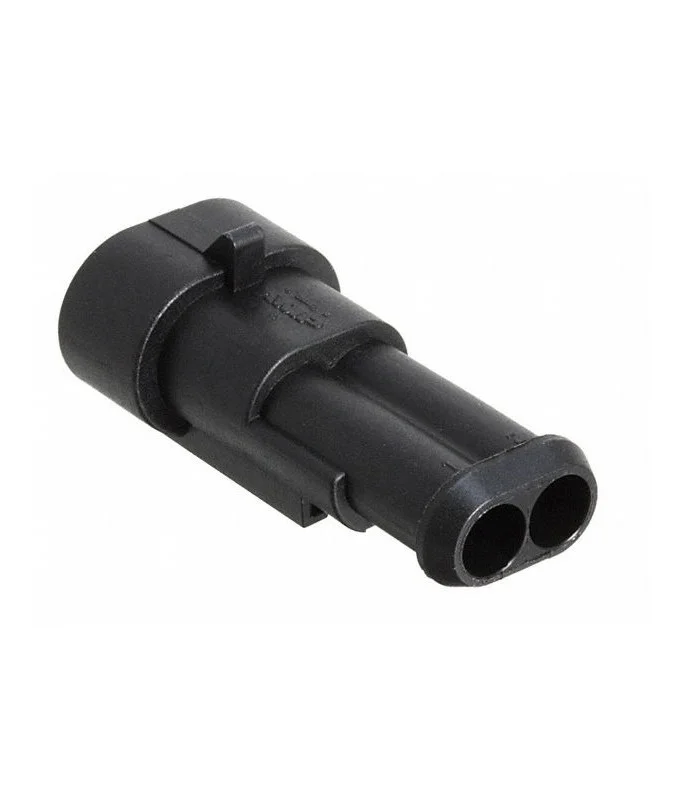

Description
Series: SUPERSEAL
No. of Positions: 2
Pitch Spacing: 6mm
For Use With: Superseal 1.5 Series Connectors
Cable Diameter Max: 2.4mm
Cable Diameter Min: 1.8mm
Connector Body Material: Nylon 6.6 (Polyamide 6.6)
Current rating: 14A
External Depth: 16.3mm
External Length / Height: 42mm
External Width: 19.8mm
Gender: Receptacle
Insulation Resistance: 200Mohm
Operating Temperature Max: 125°C
Operating Temperature Min: -40°C
Withstand Voltage: 1500V
