Description

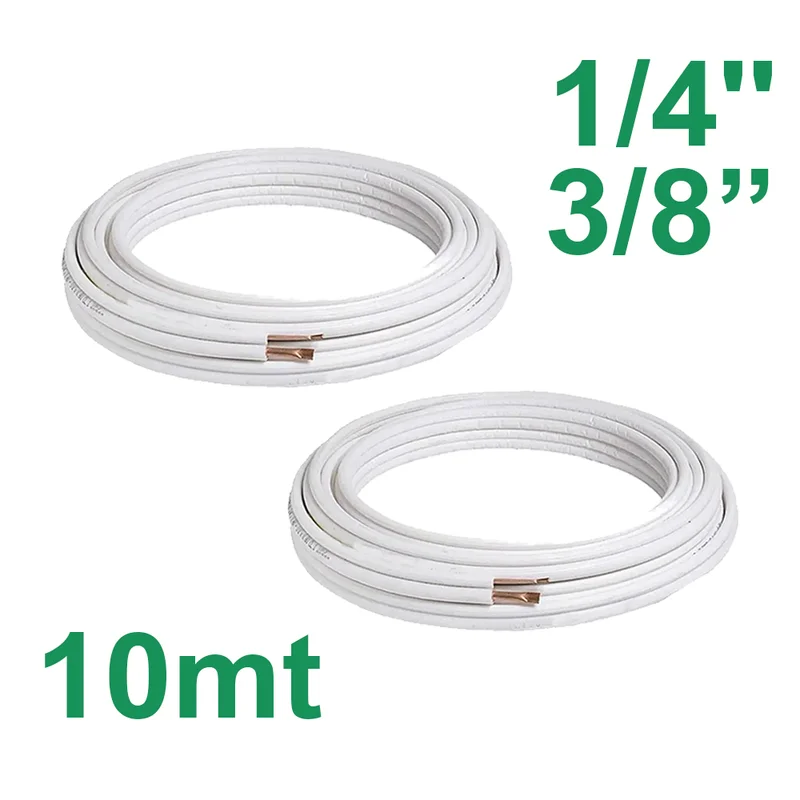

Copper Tubes Pair for Air Conditioning
10 m – 1/4” + 10 m 3/8”
Gas R32 – R410a – R407c – R22
Characteristics:
Copper Tubes
Annealed copper (R220), with mechanical properties, dimensions, tolerances, and eccentricities meeting the UNI EN 12735-1 standard.
Suitable for refrigerants R407C and R410A, with internal cleaning and dehumidification using inert gas with a maximum overall residue of 0.034 g/m² and sealed ends according to ASTM B280.
Insulation
Insulating sheath made of physically cross-linked closed-cell expanded polyethylene with the following technical values:
– Thermal conductivity at 40°C 0.040 W/m*K
– Water vapor diffusion resistance factor (anti-condensation) 10000
– Fire reaction class 1
– Operating temperature -80°/+120°C
– Does not contain CFCs
Outer film made of extruded polyethylene (LDPE) in white color, with flame retardant additives, adhering well to the foam to ensure a high level of anti-condensation, excellent abrasion and tear resistance.
Product Code: 101438
