Description

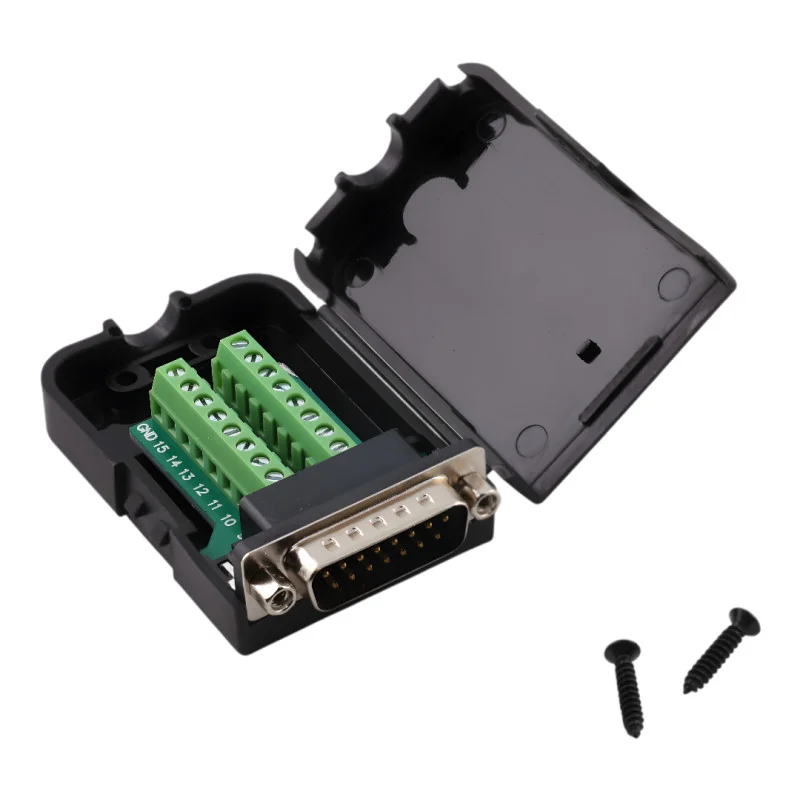

Practical D-SUB DB15 (DE-15) male with integrated screw terminal block allows quick connection of wires without the need for soldering. Suitable for service and prototype wiring as well as for industrial applications where clear installation and the possibility of repeated disassembly are required.
Technical specifications
Connector type: D-SUB DB15 (DE-15) male (plug)
Number of pins: 15 (2 rows)
Pitch between pin rows: 2.84 mm
Horizontal pin pitch in a row: 2.77 mm
Connection type: screw terminal block
Material: metal connector + plastic cover (ABS)
Mechanical design: with nuts for fastening
Dimensions: 66 × 42 × 20 mm
Housing color: black
Functions and features
Quick and clear connection without soldering
Screw terminals for fixed and repeatable wire connections
Lockable plastic cover to protect the wiring
Cable entry and strain relief hole
Compatible with common D-SUB DB15 (DE-15) counterparts
Ideal for
Control and automation technology
Industrial applications and laboratory equipment
Service and test cabling
Prototyping and quick connection of signal wires
Package contents
D-SUB DB15 (DE-15) male with screw terminal block and cover
Why choose this product?
Allows for wire connections without soldering, suitable for both service and development
Mechanical fastening with nuts increases the stability of the connection
Metal connector and ABS housing provide standard mechanical protection for everyday use
Installation and operating instructions
Before assembly, verify that the pin connections match your application.
Strip the wires to the appropriate length and tighten the terminals firmly.
After connection, close the cover and secure the cable against pulling.
Safety notice
The product is intended for signal and low voltage applications; verify suitability for specific voltage and current loads before use
Perform installation with the device power disconnected
