Description

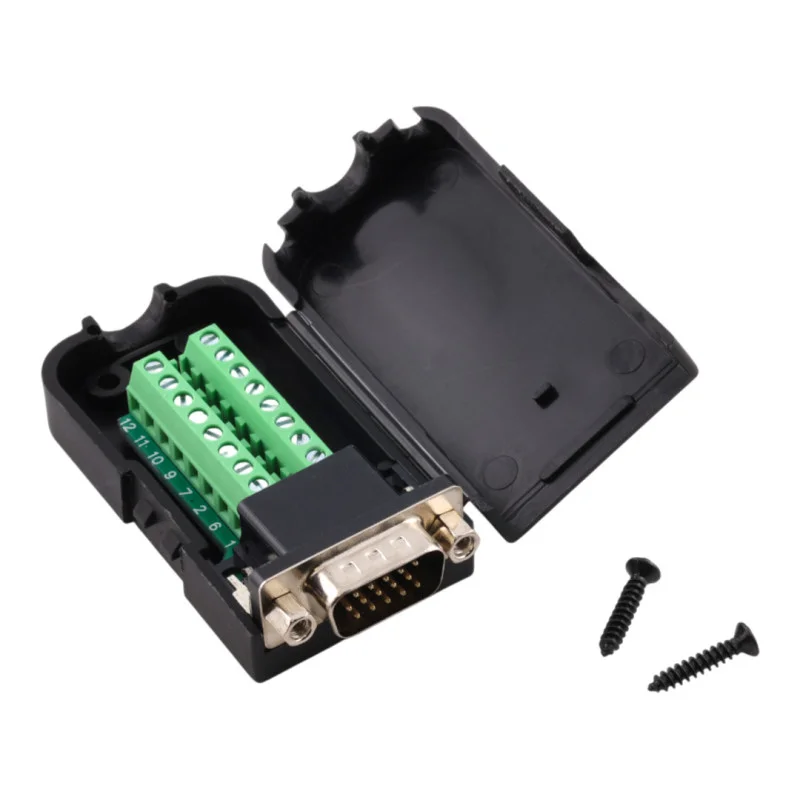

The DE15 type D-SUB connector (often referred to as VGA) in male design is designed for quick termination and connection of wires without soldering. The design with a plastic cover and integrated screw terminal block facilitates assembly in service applications, prototyping and in the production of cable adapters.
Technical specifications
Connector type: D-SUB DE15 (3 rows), male
Number of pins: 15
Dimensions: 66 × 42 × 20 mm
Pitch between pin rows: 2.84 mm
Horizontal pin pitch in a row: 2.77 mm
Material: metal connector + plastic cover (ABS)
Fastening: connector with threaded nuts (for countersunk screws)
Functions and features
Screw terminal blocks for connecting wires without soldering
Protective cover for mechanical locking and basic wiring protection
Metal shielded connector body for standard D-SUB installations
Suitable for the manufacture of adapters and service connections of signal lines
Ideal for
VGA (DE15) cable adapters and test fixtures
Service and laboratory wiring where quick assembly is required
Prototyping and temporary signal interconnection via D-SUB interface
Industrial and measurement applications using D-SUB connectors
Package contents
D-SUB DE15 male connector with terminal block and cover
Why choose this product?
Technically correct design DE15 (3 rows, 15 pins) for VGA interface
Solderless assembly reduces installation time and simplifies servicing
ABS housing ensures compact design and mechanical protection
Threaded nuts allow standard locking in the D-SUB mating piece
Installation and operating instructions
Before assembly, verify the pin numbering and wire assignment according to your application.
Strip the wires to the appropriate length and tighten the terminals firmly to prevent loosening.
After connection, check that no wires protrude into the housing space and that there is no short circuit.
Secure the connector in the mating piece using the side nuts to minimize stress on the wires.
Safety notice
The product is intended primarily for signal applications; before use, verify electrical parameters and suitability for your wiring.
Perform installation with the power disconnected to prevent damage to the device or short circuit.
