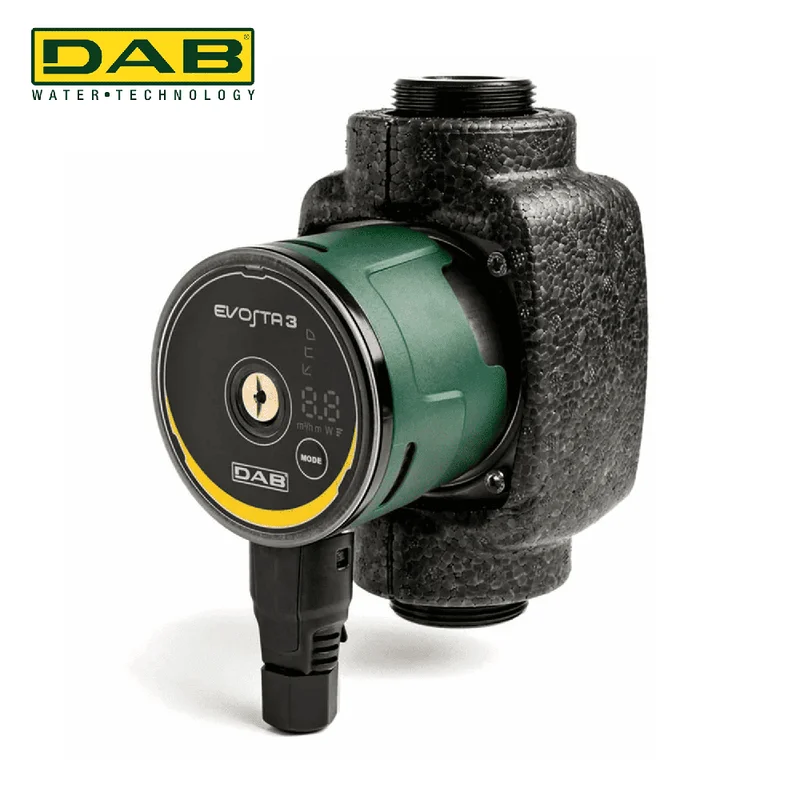

DAB EVOSTA 3 80/180 1” electronic circulator inverter eco heating pump Description:
The DAB EVOSTA 3 80/180 1” electronic circulator (product code 60231854) is designed to ensure maximum efficiency in domestic and residential heating systems. Thanks to the integrated inverter technology and permanent magnet synchronous motor, the pump automatically adjusts its speed according to the actual system requirements, reducing energy consumption and ensuring stable and quiet operation. The highly readable front display allows real-time monitoring of parameters such as head, flow rate and power consumption, while the push-button selector allows you to choose between nine operating modes: three proportional pressure curves, three constant pressure curves and three fixed-speed curves. The robust structure, with cataphoresis-coated cast iron pump body and stainless steel motor casing, guarantees long life and corrosion resistance. The 1 threaded connections and the 180 mm installation length make the model compatible with most existing systems, facilitating the replacement of traditional pumps without modifications to the system. The anti-blocking function, automatic degassing and integrated electronic protection ensure long-term reliability, preventing stoppages due to impurities or limescale. With a flow rate of up to 4,2 m³/h and a maximum head of 8 metres, EVOSTA 3 is ideal for radiator systems, underfloor heating and modern hydronic circuits.
Features:
Integrated inverter technology to automatically optimize consumption and performance.
Front digital display for immediate monitoring of operating parameters.
Nine operating modes: 3 proportional curves, 3 constant curves, 3 fixed-speed curves.
Anti-blocking system and automatic degassing function for maximum reliability.
Compatible with electrical connectors of other brands for quick replacements.
Wet rotor motor for quiet operation and reduced maintenance.
Durable cataphoresis-coated cast iron pump body for long service life.
Specifications:
Model: DAB EVOSTA 3 80/180 1”
Product code: 60231854
Flow rate: 0,4 4,2 m³/h
Maximum head: 8 m
Maximum operating pressure: 10 bar (data also confirmed by the PDF: PN MAX 1,0 MPa (10 bar)).
Liquid temperature: from -10°C to +110°C
Hydraulic connections: 1” (DN25 G 1 1/2)
Installation length: 180 mm
Protection rating: IPX5
Insulation class: F
Power supply: 1×230 V ~ 50/60 Hz
Liquid compatibility: clean water, water/glycol mixtures up to 30%
Materials: cataphoresis-coated cast iron pump body, technopolymer impeller, stainless steel motor casing
Weight: 2,22 kg (data from certified retailer)
Not suitable for pumping flammable or hazardous liquids (as stated in the PDF: The circulator is not suitable for pumping flammable or hazardous liquids.)
Product code: 60231854
