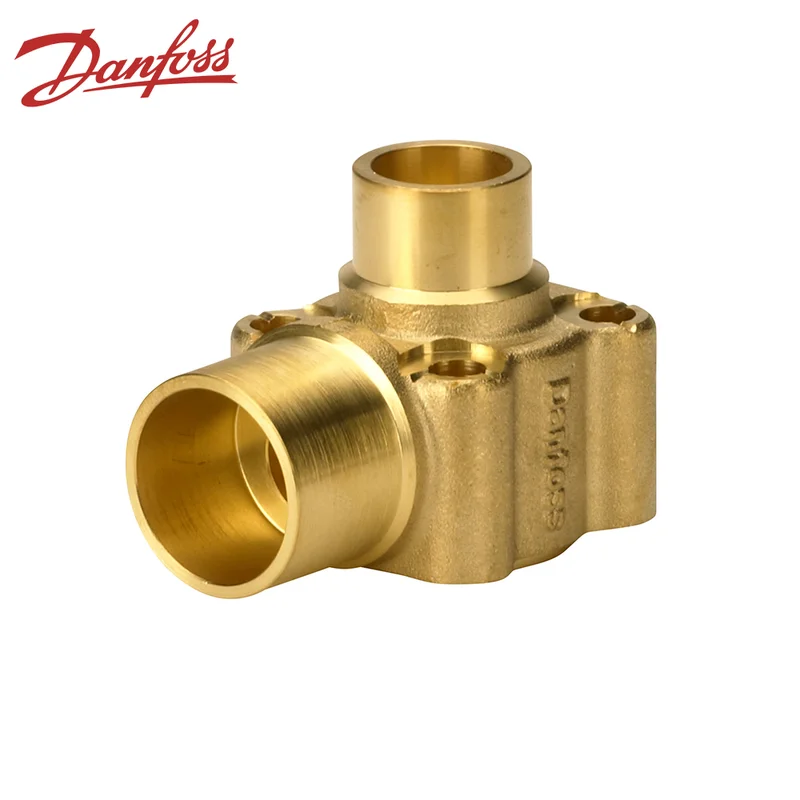

067B4012 – Danfoss – Valve body for expansion valve 16 mm ODF 22 mm
Description:
The TE 5 – TE 55 expansion valve regulates the injection of refrigerant into evaporators. It controls the flow of refrigerant based on superheating. The interchangeable power element is made using Danfoss’s renowned laser welding technology for increased durability.
The TE 5 – TE 55 series is available with a wide range of orifice sizes to cover a broad range of applications.
Applications:
Air conditioning systems
Chillers
Cold rooms
Freezers
Other refrigeration systems
Technical details:
Gross weight: 0.294 Kilogram
Net weight: 0.261 Kilogram
Product accessories: TXV accessories
Approval: LLC CDC TYSK
China RoHS compliance: Out of scope
Included components: Screws, washers
Contain batteries: No
Outlet dimension [mm]: 22 mm
Inlet dimension [mm]: 16 mm
Direction: Angle
REACH candidate substances list: Lead (CAS no. 7439-92-1)
EU RoHS compliance: Out of scope
Packaging format: Bulk packaging
Product group: Expansion valves
Flow direction indicator: Raised one-way arrow printed
Inspectable: TXV spare parts
Connection material: Brass
Body material: Brass
SCIP dossier number: 7a4717a2-7803-4273-9d94-59ccfb927c1e
Single part name: TE 5
Product name: Expansion valve body
SCIP dossier name: TE
Balanced orifice [yes/no]: No
Flow: One-way
Quantity per packaging format: 32 pcs
Type: TEH
Inlet connection type: Soldering, ODF
Outlet connection type: Soldering, ODF
Used for product: TE 5
Product code: 067B4012
