Description

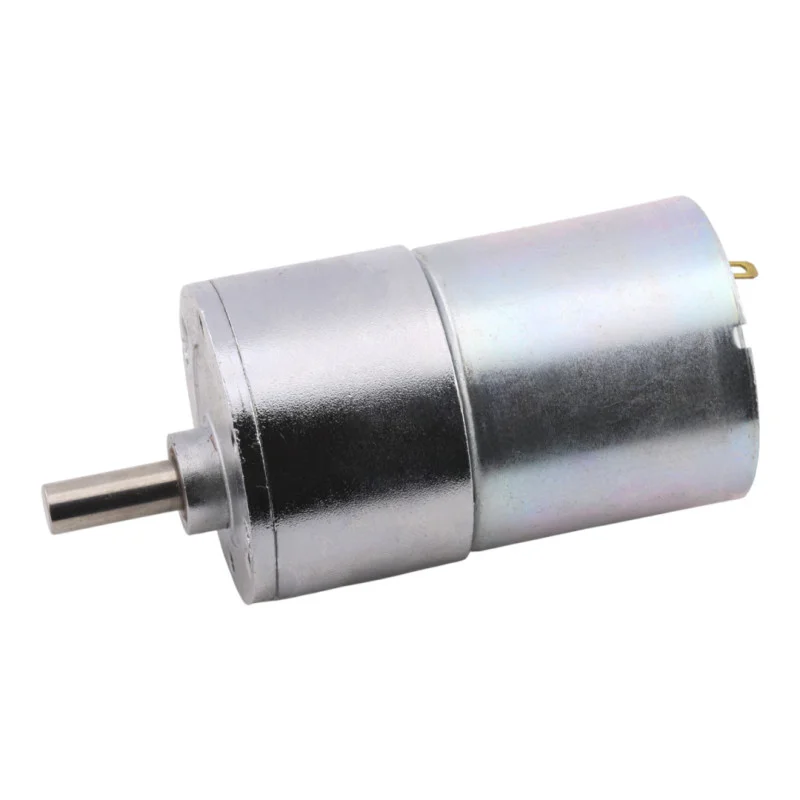

The powerful GA37RG series geared motor is equipped with a planetary gearbox and provides high torque at low speeds. It is ideal for precision motion mechanisms, robotics, sliding systems, home and industrial automation. The 12V or 24V version and six speeds from 10 to 550 RPM allow for precise adjustment to the specific application.
Technical specifications
Supply voltage: 12V DC or 24V DC (depending on the selected variant)
Rotation speed (selected variants): 10 RPM / 20 RPM / 50 RPM / 100 RPM / 200 RPM / 550 RPM (depending on the selected variant)
Motor type: DC gear motor
Gearbox: Planetary, different gear ratios depending on speed
Torque: up to 2 kgf cm (depending on version)
Commutation: Brushed
Construction: Permanent magnet
Motor power: 2W
Current consumption: 100 mA (typical, depending on load)
Weight: 92g
Protection: IP20 (drip-proof)
Motor dimensions: 37 mm diameter, body length 2939 mm depending on gearbox
Shaft dimensions: Ø 6 mm, length 14 mm
Functions and features
Strong torque even at very low speeds
Planetary gearbox for high efficiency and long service life
Stable operation without vibrations and with minimal noise
Versatile speed selection options thanks to a wide range of gear ratios
Quality construction suitable for hobby and professional projects
Ideal for
Robotics and mechatronics projects
Linear and sliding mechanisms
Rotary platforms, servomechanisms and transmission systems
Automated doors, barriers and locks
DIY constructions, models and home automation
Package contents
1× Gear motor GA37RG
Why choose this product?
Precise speed selection from 10 to 550 RPM
Choice between 12V and 24V for compatibility with different systems
Planetary gearbox ensures smooth and reliable operation
High torque even at low speeds
Suitable for precise and demanding motion applications
Parameters
| 12V | 2.5R | 1750 | 627:1 |
| 12V | 5.5R | 3500 | 627:1 |
| 12V | 11R | 2500 | 244:1 |
| 12V | 14.5R | 3500 | 244:1 |
| 12V | 22R | 5000 | 244:1 |
| 12V | 29R | 5000 | 172:1 |
| 12V | 52R | 5000 | 95:1 |
| 12V | 68R | 5000 | 73.6:1 |
| 12V | 87R | 5000 | 57:1 |
| 12V | 110R | 3500 | 31.6:1 |
| 12V | 135R | 5000 | 37:1 |
| 12V | 158R | 5000 | 31.6:1 |
| 12V | 205R | 5000 | 24:1 |
| 12V | 260R | 3500 | 13.5:1 |
| 12V | 370R | 5000 | 13.5:1 |
| 12V | 550R | 5000 | 9:1 |
| 12V | 888R | 8000 | 9:1 |
| 24V | 5.5R | 3500 | 627:1 |
| 24V | 12R | 5000 | 401:1 |
| 24V | 14.5R | 3500 | 244:1 |
| 24V | 20R | 5000 | 244:1 |
| 24V | 29R | 5000 | 172:1 |
| 24V | 52R | 5000 | 95:1 |
| 24V | 68R | 5000 | 73.6:1 |
| 24V | 87R | 5000 | 57:1 |
| 24V | 110R | 3500 | 31.6:1 |
| 24V | 135R | 5000 | 37:1 |
| 24V | 158R | 5000 | 31.6:1 |
| 24V | 205R | 5000 | 24:1 |
| 24V | 260R | 3500 | 13.5:1 |
| 24V | 370R | 5000 | 13.5:1 |
| 24V | 550R | 5000 | 9:1 |
| 24V | 888R | 8000 | 9:1 |
