Description

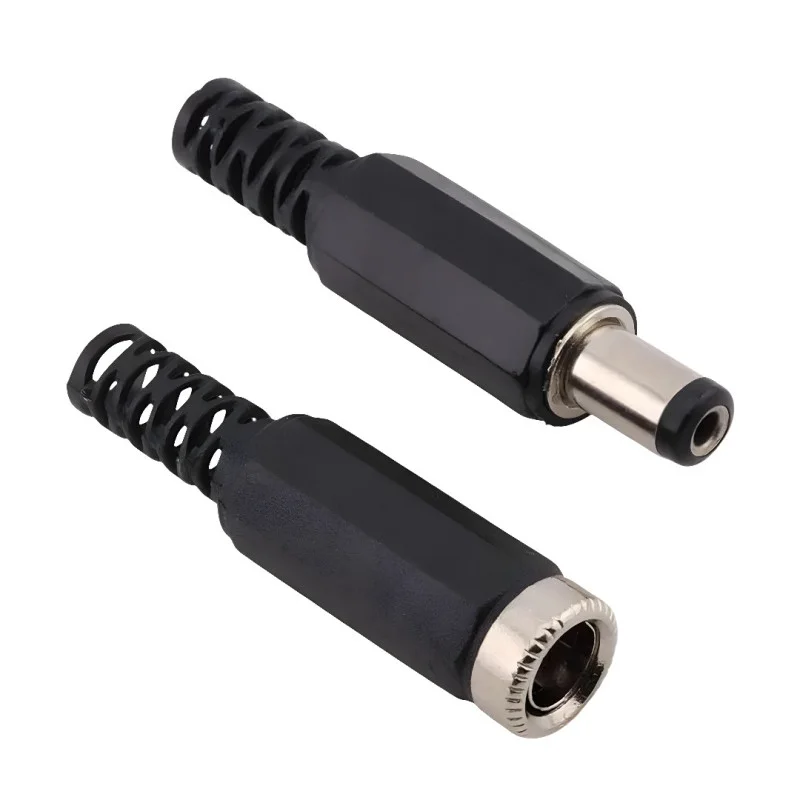

DC power connector (barrel) for terminating power wires in low voltage applications. The connector is designed for direct mounting on the cable, the termination is done by soldering and the cover provides basic mechanical protection and strain relief. The product is available in two versions: male (DC plug) and female (DC jack).
Technical specifications
Connector type: DC barrel (power connector)
Size: 5.5 × 2.1 mm (outer diameter 5.5 mm, inner diameter 2.1 mm)
Variants: male / female
Mounting: on cable
Color: black
Wire connection method: soldering
Rated voltage: max. 36 V DC
Rated current: 5 A
Contact wire material: metal
Insulation material: plastic
Approximate dimensions: male length approx. 44 mm; female length approx. 40 mm
Functions and features
Standard DC size 5.5×2.1 mm for common power adapters and devices
Solder design for fixed electrical connection
Connector cover with strain relief for cable
Suitable for repair and production of power cables
Ideal for
LED lighting and LED strips (low voltage systems)
Powering small electronics and DIY projects
Service replacement of damaged DC connectors on the cable
Interconnecting power cables for laboratory and test purposes
Package contents
1× DC connector 5.5×2.1 mm in the selected variant (male or female)
Why choose this product?
Clearly defined 5.5×2.1 mm dimension for compatibility with common DC power systems
Solder wire connections suitable for reliable cable termination
Availability of male and female variants for power jumper assembly
Installation and operating instructions
Before assembly, verify the size of the mating piece (5.5×2.1 mm) and the required polarity of the device.
Solder the wires to the connector contacts, then check the mechanical securing of the cable in the strain relief.
After connection, we recommend checking the polarity and voltage with a multimeter before connecting the load.
Do not exceed the rated current and ensure adequate conductor cross-section.
Safety notice
The product is intended for low voltage DC applications within the specified range; do not use for mains voltage.
When soldering, follow safety precautions and avoid short circuits between contacts.
Incorrect polarity may cause damage to the powered device.
