Digital Clamp Meter CM-2017 with Probes and Case-Spedizione veloce

Description

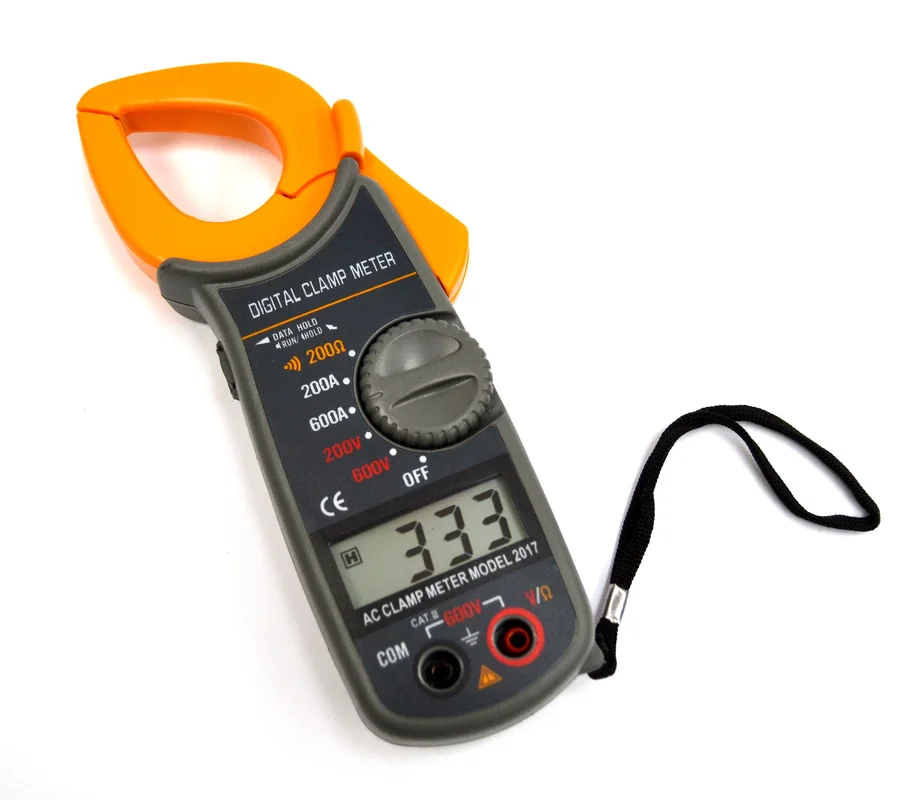

CM-2017 – Digital Clamp Meter
Digital clamp meter compliant with IEC 1010, IEC 61010-1, UL3111, and VDE0411 standards.

Features:

Three functions in one: AC current, AC voltage, and resistance;

For resistance tests, an audible signal is provided;

Frequency response from 40Hz to 1 kHz for AC currents and voltages;

Measurements can be made up to a maximum of 600A and 600V;

The ‘Data hold’ function allows for the reading to be paused, enabling later review of the measured value.

Technical specifications:

Altitude: < 2000 m;

Operating temperature: from -10 to +50°C (

Storage temperature: from -10 to 60°C (

MAX. voltage between terminals and ground: 600Vrms.;

Response time: about 1 second (2 seconds in resistance mode);

Display: LCD 3 1/2 digit with max. reading of 1999;

Automatic indication of functions and symbols;

Dimensions (LxHxD): 208 x 90 x 40 mm;

Weight: approximately 400 g (including battery);

Accessories: Italian and English user manual – Test leads – Carrying case and 9V battery.

Product code: CM-2017
