Description

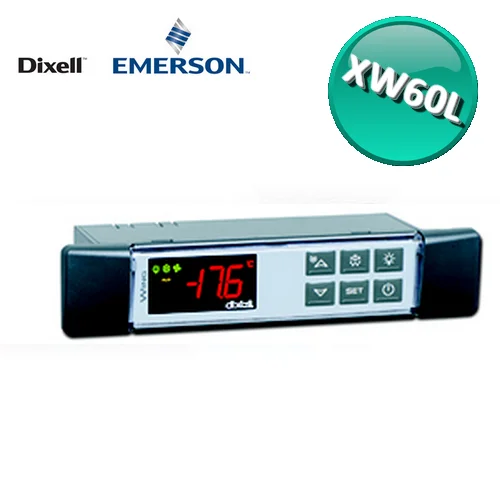

XW60L – Digital Controller for TN and BT with Defrost Management and Fans
DIXELL 230 Vac
Characteristics:
The XW60L is a microprocessor-based controller, suitable for applications on ventilated refrigeration units for medium or low temperatures.
It has four relay outputs for controlling the compressor, defrosting (with hot gas or resistance), evaporator fans, and lighting. It features 2 selectable NTC or PTC probe inputs, one for thermostat control and the other for end-of-defrost temperature control on the evaporator.
It includes an output for programming parameter lists via the Hot Key programming key.
Dimensions: 38×185 mm
General:
Power supply: 24, 110, 230 Vac
Number of display digits: ± 3 d.p.
Number of keyboard buttons: 6
Probe Inputs:
Thermostat: NTC/PTC
Defrost: NTC/PTC
Condenser: NTC/PTC
Display: NTC/PTC
Digital Inputs:
Alarm, defrost start, micro door, pressure switch, probe: configurable
DI 2: configurable
Relay Outputs:
Compressor: 20 A
Defrost: 8 A
Fans: 8 A
Light: 8 A, 16 A
Other:
Hot Key/Prog Tool Kit: present
Serial output: TTL
Remote display output: X-REP optional
Buzzer: optional
Internal clock: optional
Product code: XW60L
