Description

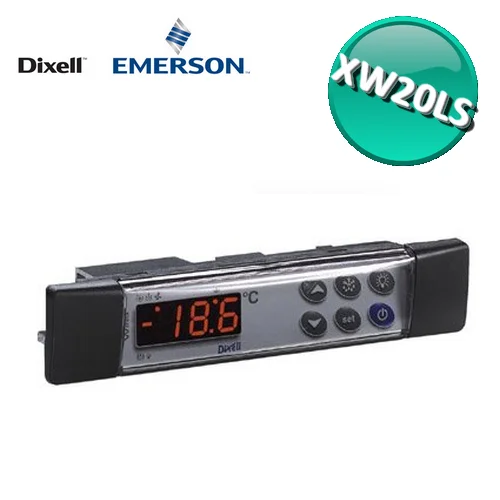

XW20LS – Digital controller for TN with defrost for compressor stop
DIXELL 230 Vac
Features:
The XW20LS is a microprocessor controller, size 38×185, suitable for use in normal temperature refrigeration units.
It has two relay outputs for controlling the compressor and light. It includes 1 NTC or PTC probe input for temperature regulation.
Dimensions:
38x185mm
General:
Power supply: 230Vac
Number of display digits: ± 3 d.p.
Number of keyboard buttons: 6
Probe inputs:
Thermostat: NTC/PTC
Defrost: NTC/PTC
Condenser: NTC/PTC
Display: NTC/PTC
Digital inputs:
Alarm
defrost start
micro switch
pressure switch
probe: configurable
DI 2: configurable
Relay outputs:
Compressor: 20A
Light: 8A, 16A
Other:
Hot Key/Prog Tool Kit: present
Serial output: TTL
Remote display output: X-REP optional
Buzzer: optional
Internal clock: optional
Product code: XW20LS
