Description

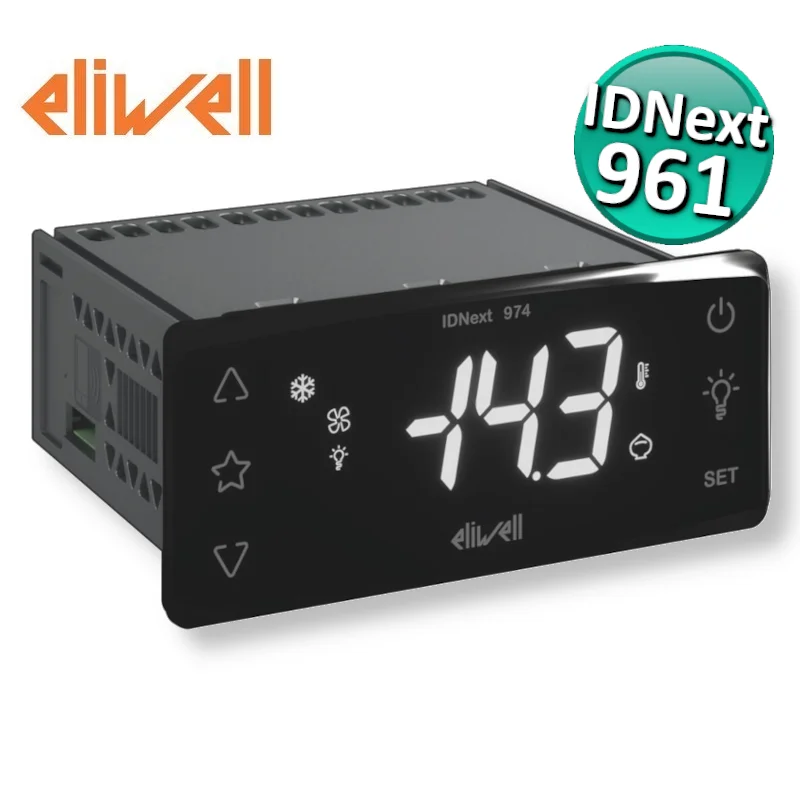

Digital electronic temperature controller
For refrigerated units ID NEXT 961 – 230Vac
Description:
– Operating temperature: -5…55°C
– Storage temperature: -30…85°C
– Ambient humidity: 10…90% RH (non-condensing)
– Power supply: 230Vac
– Power consumption: 5.5 VA
Display range:
-99.9+99.9 °C
-999+999 °C
– Number of analog inputs: 1
– Analog inputs: 1x PTC or NTC or Pt1000
– Number of digital inputs: 1
– Digital inputs: 1x SELV
– Number of digital outputs: 1
– Digital outputs: 1x SPST 2Hp 12(8)A 230Vac
– Display: LED 3 digits + sign
– Resolution (0.1°C with decimal point): 0.1°C
Measurement range:
– NTC: -50.0+110.0 °C
– PTC: -55.0+140.0 °C
– Pt1000: -55.0…+150.0 °C
Accuracy:
– NTC: better than 0.5% of full scale + 1 digit
– PTC: better than 0.5% of full scale + 1 digit
– Pt1000 [-55.0+70.0°C]: better than 0.5% of full scale + 1 digit
– Pt1000 [+70.0+150.0°C]: better than 1% of full scale + 1 digit
– Connectivity: TTL port for Unicard or TelevisSystemModBus supervisor connection
– Number of serial ports: 1
– Serial ports: 1x TTL
– Installation: Panel mount, 71×29 mm
– Accessories: Unicard USB/TTL – Dongle: BTLE/TTL
– Functions: Multi Map, Buzzer
– Net weight: 165 g
– Net width: 81 mm
– Net height: 35 mm
– Net depth: 60 mm
Product code: IDN961P7D107000
