Description

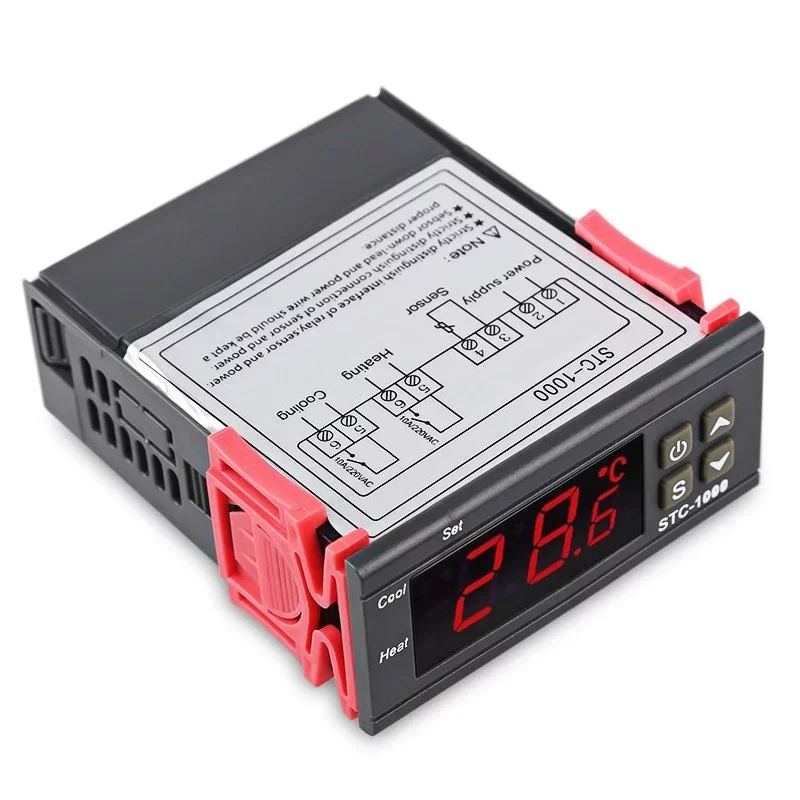

A simple digital thermostat with two output relays allows temperature control from -50°C ~ 100°C with 0.1°C resolution. For example, heating can be connected to one output and cooling to the other. Both heating and cooling will then maintain the set temperature on the thermostat. The thermostat includes a resistive temperature sensor in a waterproof stainless steel housing with IP68 protection. Power supply 12V DC.
Power consumption: 3W
Adjustable temperature: -50°C ~ 99.9°C (0.1°C resolution)
Temperature measurement accuracy: ±1%
Temperature sensor: resistive NTC, 10k, 0.5%
Switching contact: 250V AC 10A (under resistive load!)
Relay contact type: switching
Operating temperature: 0 ~ 60°C
Display color: red
Dimensions: 75 x 34.5 x 85mm
Dimensions for panel hole: 71 x 29mm
Weight: 138g
Accessories: waterproof NTC sensor, 1m
