Description

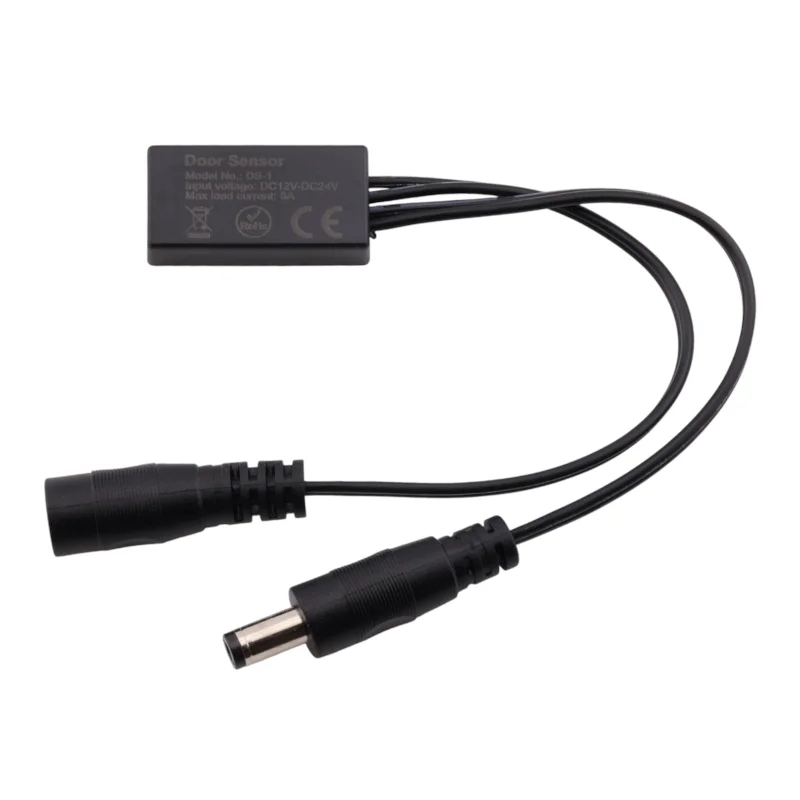

The compact DS-1 door sensor is used to automatically turn LED lighting on and off when a door is opened or closed. It is most often used for LED strips in furniture, kitchen units, wardrobes, display cases or technical cabinets. Thanks to the simple connection using DC connectors, installation is quick and without the need for soldering.
Technical specifications
Model: DS-1
Supply voltage: DC 12-24 V
Maximum switching current: 6 A
Maximum power: 72 W at 12 V / 144 W at 24 V
Sensor type: infrared door sensor
Switching distance: 03 mm
Case material: ABS plastic
Module dimensions: 32 × 16 mm
Total cable length: 187 mm
DC cable length: 155 mm
Connectors: DC jack 5.5 × 2.1 mm (male + female)
Degree of protection: IP20
Weight: 20g
Functions and features
Automatic switching on of LED lighting when opening the door
Automatic lighting shutdown when the door is closed
Non-contact infrared detection
Low energy consumption
Compact dimensions suitable for concealed mounting
Plug & Play connection without programming required
Compatible with most 12V and 24V LED strips and LED lights
Ideal for
Kitchen cabinets and worktops
Wardrobes and built-in furniture
Display cases and sales shelves
Technical and distribution cabinets
LED strips in homes and commercial spaces
Package contents
1× door sensor switch DS-1
Why choose this product?
Simple and reliable solution for automatic LED lighting control
High load capacity up to 6 A
Wide supply voltage range 1224 V
Quick installation without tools or soldering
Elegant and discreet design suitable for interior use
