Description

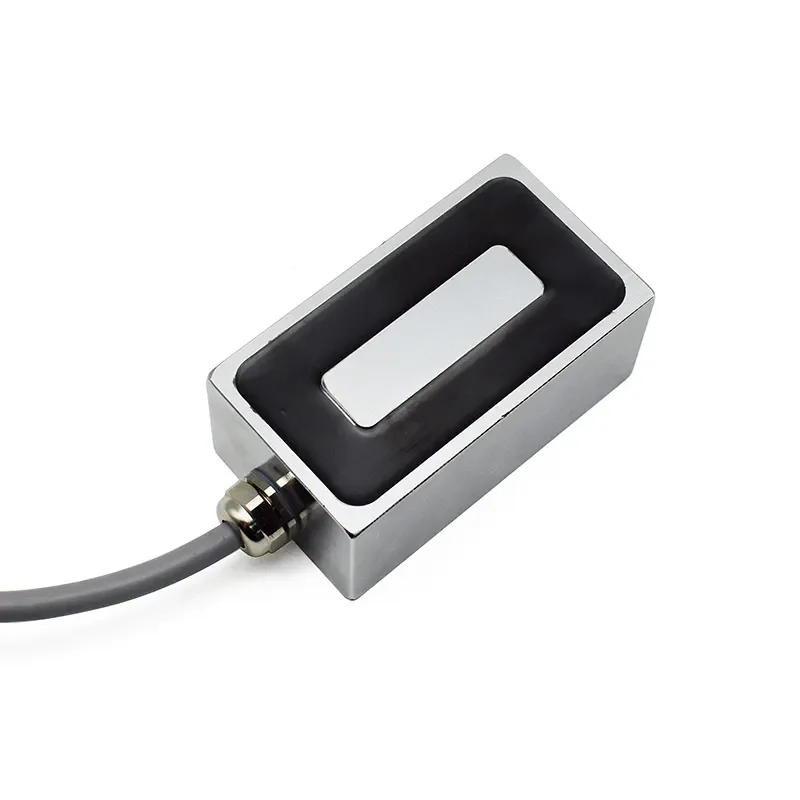

A powerful rectangular electromagnet with a high clamping force of up to 150 kg is designed for reliable holding of metal objects in industrial and technical applications. Thanks to the high-quality copper coil, full sealing and robust metal body, it ensures a long service life, low energy consumption and safe operation without residual magnetization after switching off.
Technical specifications
Dimensions: 100 × 50 × 40 mm
Holding force: up to 150 kg
Supply voltage: 12V DC or 24V DC (depending on variant)
Power consumption: approximately 15-18 W
Coil material: copper wire (red copper coil)
Protection: waterproof and oil-resistant design (fully sealed body)
Operating temperature: -10 °C to +80 °C
Weight: 1.5 kg
Connection: wire with grommet and strain relief
Functions and features
High pressing force even with compact dimensions
No residual magnetization after power off
Low energy consumption and minimal temperature rise
Easy installation using mounting holes
Direct current (DC) power supply
Possibility of regulating force by changing the supply voltage
Safe and quiet operation without mechanical wear
Ideal for
Automation and robotic systems
Textile and food machinery
Medical and laboratory equipment
Numerically controlled machines (CNC)
Handling and transport equipment
Safety and holding mechanisms
Package contents
1× electromagnet 100×50×40 mm (optionally 12V or 24V)
Power cable with grommet
Why choose this product?
Strong performance and reliability in industrial environments
High-quality copper coil for efficient magnetic field transmission
Durable waterproof design for long-term use
Safe operation without residual magnetization after switching off
Two voltage options (12V / 24V) for wide compatibility
