Description

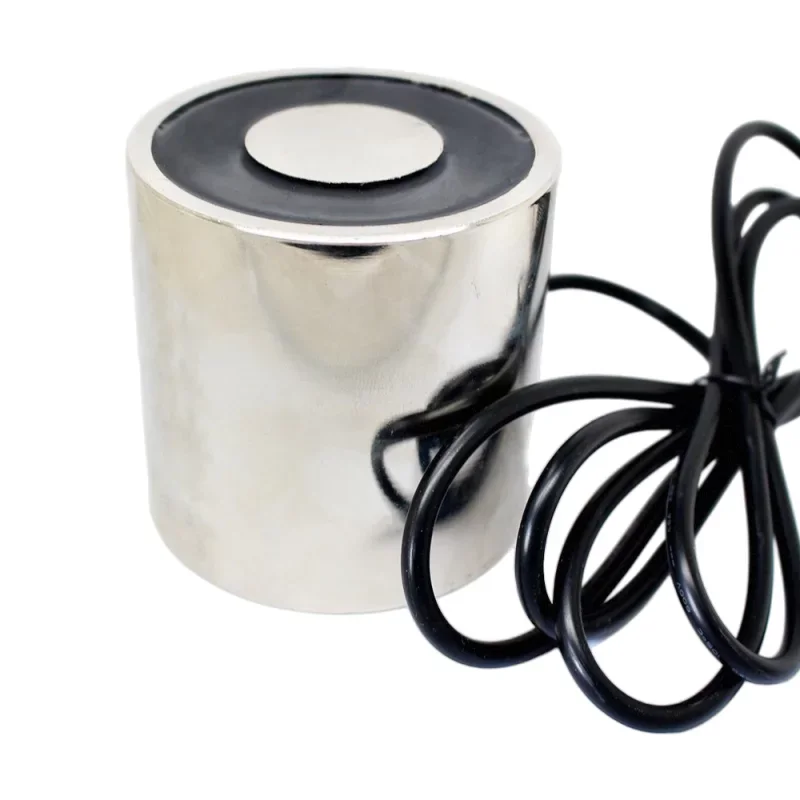

The fully encapsulated WF-P80/80 solenoid is designed for applications where high holding force is required in a compact design and mechanical protection of the winding. It is particularly suitable for industrial fixtures, clamping systems and handling equipment with DC power supply.
Technical specifications
Model: WF-P80/80
Design: fully encapsulated
Power supply: DC 24 V or 12V (depending on variant)
Holding force: 200 kg
Dimension: D80 x 80 mm
Mounting hole: M8
Power consumption: 27.4 W
Power cable length: 250 mm
Limit temperature: 103 °C
Price: for 1 pc.
Functions and features
The holding force is determined at a temperature of 20 °C in contact with a mild structural steel material with a polished surface under tension perpendicular to the surface (1 kg 10 N).
The minimum anchor thickness is given in the table (*).
In exceptional cases, the difference in holding force may be -10% of the stated values.
Encapsulation increases resistance to common industrial environments and reduces the risk of mechanical damage to the windings.
Ideal for
Clamping and positioning fixtures
Handling technology and lifting applications with ferromagnetic parts
Industrial automation
Testing and measuring workplace
Package contents
Encapsulated solenoid WF-P80/80 with 250 mm supply cable
Why choose this product?
High holding force with DC 24 V or 12 V power supply
Compact size of 80 x 80 mm for easy integration into equipment
Encapsulated design suitable for industrial use
Defined conditions for measuring holding force for technical assessment of the application
Installation and operating instructions
To achieve the declared holding force, ensure a clean, flat and polished contact with the ferromagnetic material and minimize the air gap.
When designing the mechanics, consider the load direction perpendicular to the surface and the required anchor thickness.
Ensure adequate DC 24 V power supply and dimension the wires with regard to the power consumption.
During operation, respect the limit temperature of 103 °C and ensure conditions for heat dissipation according to the device design.
Safety notice
The device is designed for direct voltage, perform installation with the power supply disconnected.
The solenoid may reach elevated temperatures during operation; avoid contact with flammable materials and ensure adequate cooling in the structure.
When power is released, there may be an immediate loss of holding force; in applications with a risk of the load falling, use appropriate mechanical protection.
