Description
The electromagnetic lock is designed for securing doors and boxes in applications where the lock is to be closed in the idle state and the latch is released after the supply voltage is applied. The design is suitable for integration into self-service boxes, cabinets and technical closures with a requirement for electrical release.
Technical specifications
Product type: electromagnetic door lock
Operating mode: locked without power supply, unlocked after power supply
Maximum latch load: 150 kg
Maximum time under voltage: 0.5 s
Power supply options: 5V DC / 1.5A, 12V DC / 2A, 24V DC / 1A (depending on variant)
Inner part material: carbon steel
Surface finish: black powder coating (komaxit)
Mechanical life: 500,000 cycles at designed load
Electromagnet life: more than 1,000,000 operating cycles at rated conditions
Dimensions: 73 x 58 x 13 mm
Cable length: 170 mm
Operating temperature: -40 to 60 °C
Functions and features
The lock works as a separate locking unit with electric release.
The latch is designed for repeated cyclic use.
The compact design makes it easy to install in limited installation space.
The design has no restrictions on the left or right side of the assembly.
The mechanism allows mechanical adjustment of the unlocking position.
The spring solution is adjustable for doors weighing 0.5 to 4 kg.
The internal metal parts are made of carbon steel.
Ideal for
dispensing and delivery boxes
cooling boxes and cabinets
mailboxes and newspaper boxes
self-service storage boxes
library and dispensing counters
wardrobes and changing rooms
Package contents

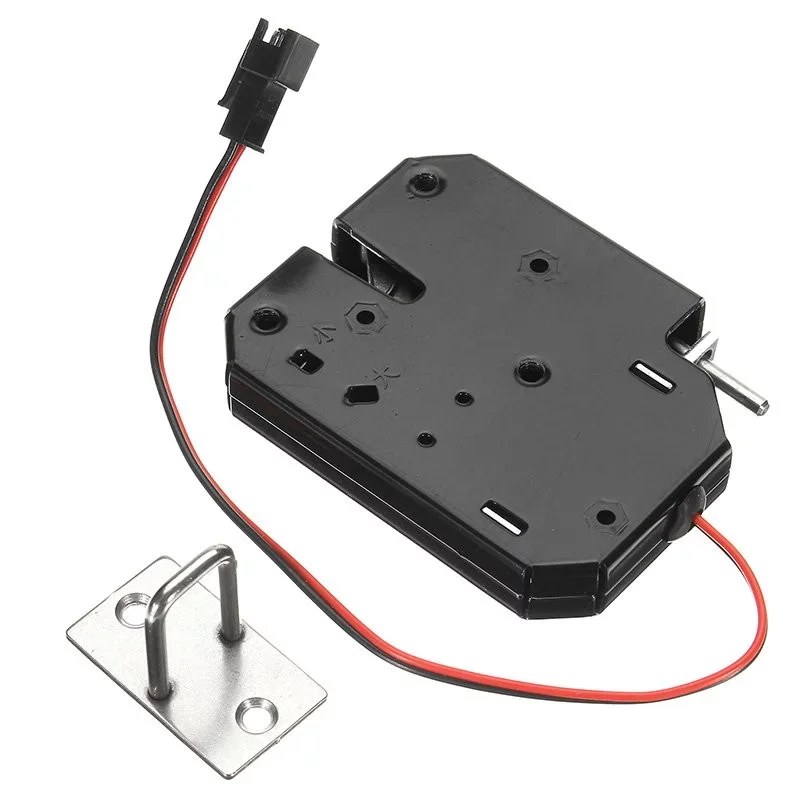

1x electromagnetic lock
1x latch counterpiece
Why choose this product?
The defined operating mode allows use in systems with an electric impulse for unlocking.
The stated latch strength of 150 kg is suitable for securing light doors and boxes.
Compact dimensions support installation in built-in applications.
The availability of multiple power supply options facilitates integration into various electrical systems.
The design is designed for a high number of working cycles.
Installation and operating instructions
Before installation, verify that the supply voltage and current load match the lock variant used.
Install the lock so that the latch and counterpiece are in the exact mechanical position without tension.
During installation, ensure correct cable routing and protection of the wires against damage.
For reliable operation, use a door weighing between 0.5 and 4 kg.
Installation in devices with electrical control should be carried out by a person with knowledge of the relevant wiring.
Safety notice
Incorrect power connection may cause damage to the solenoid, wires, or control electronics.
The power supply must be disconnected during installation and service.
The lock is not intended as a security feature for the protection of persons, emergency escape routes or doors requiring security certification.
When used in access or automation systems, the risk of pinching and unintentional unlocking must be taken into account.
