Description

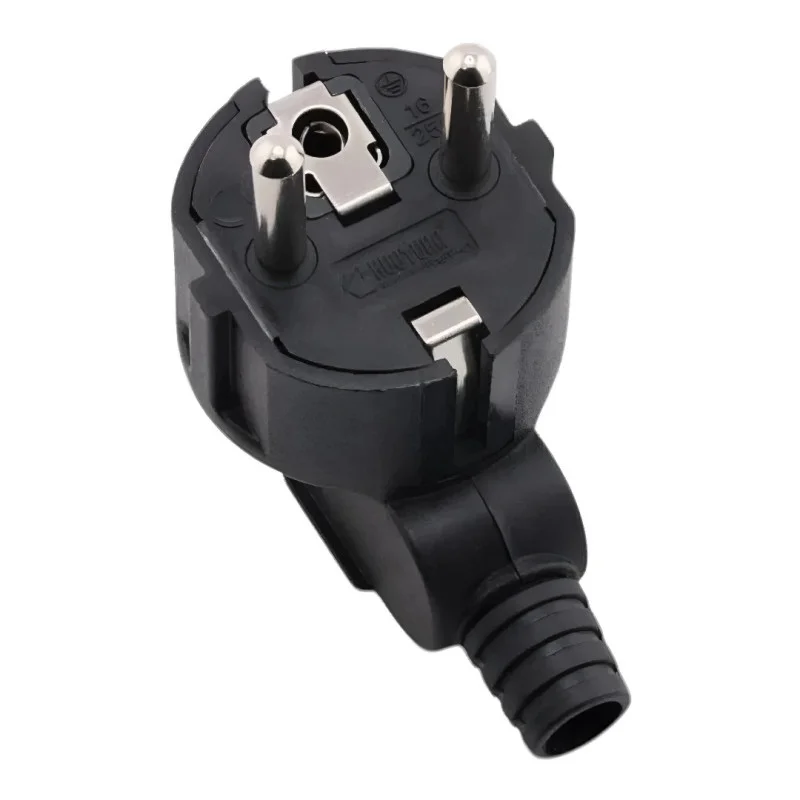

The plug-in EU mains plug is used to terminate the power cable and connect the device to a European socket with a grounding contact. The design is intended for re-assembly on the cable. The product is available in white and black.
Technical specifications
Product type: pluggable electrical plug for EU connection
Design: male, cable mounting
Rated current: 16 A
Rated voltage: 250 V
Connection type: screw connection of wires inside the fork body
Grounding: yes, standard protective grounding
Number of poles: 2P+PE
Body material: plastic
Contact material: copper, ABS and fire-resistant plastic are listed in the product documentation
Color options: white, black
Functions and features
Detachable design for mounting on power cable
European design with grounding contacts for connection to compatible sockets
The cable outlet is part of the fork body
Suitable for replacing a damaged plug or installing a new power cable
Available in two color options makes it easy to match your cable or device
Ideal for
Termination of mains leads of electrical devices
Replacing a damaged or faulty fork
For household use and general power applications
Package contents
1x plug-in EU power plug
Why choose this product?
Allows mechanical and electrical termination of the cable in EU standard with grounding
The detachable design supports service replacement of the fork without the need to replace the entire cable
Choice of white or black options allows customization to a specific installation or device
Installation and operating instructions
Only perform installation on a disconnected cable without voltage present.
The wires must be properly stripped, firmly secured in the terminals, and the fork body must be completely closed after assembly.
The cable must be mechanically secured against pulling out at the point of entry into the plug.
Use the plug only with sockets of the corresponding European design with grounding.
Safety notice
The product operates with a mains voltage of 250 V. Incorrect connection may result in electric shock, short circuit or damage to the connected device.
Installation requires correct wiring, including protective conductor. If you are not qualified, have the installation carried out by a qualified person.
Do not use after mechanical damage, loose contacts or insufficiently tightened terminals.
Do not overload the product beyond the stated ratings.
