Description
Powerful axial fan from SUNON designed for reliable cooling of electronics, power supplies, cabinets and industrial equipment. The EEC0251B1-000C-A99 model combines high airflow, long life and compact standard size of 120 mm, making it an ideal choice for professional and OEM applications.
Technical specifications
Manufacturer: SUNON

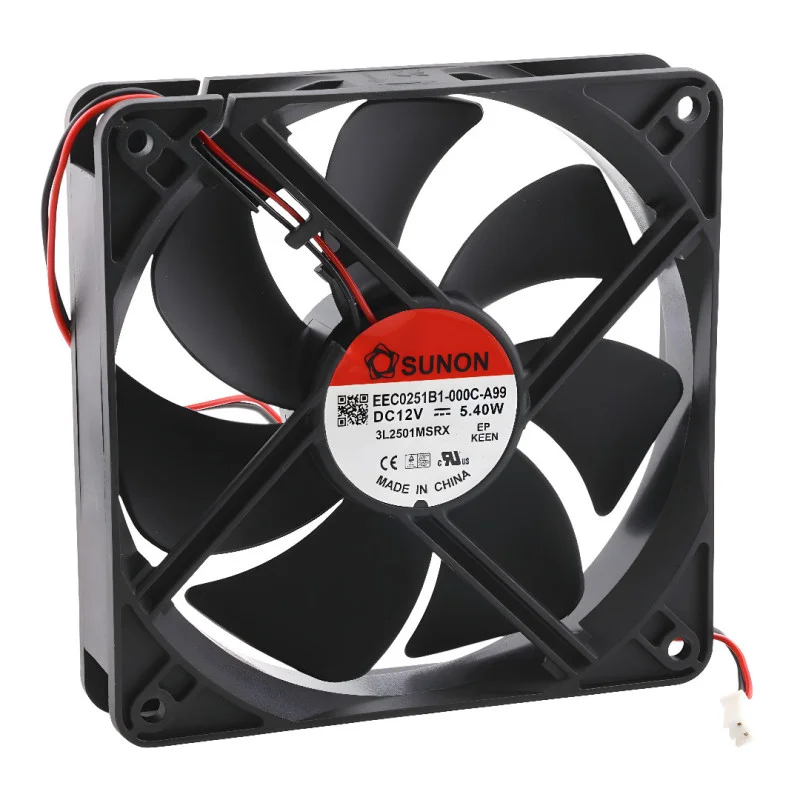

Model: EEC0251B1-000C-A99
Type: axial DC fan
Supply voltage: 12 V DC
Operating voltage range: 6-13.8 V DC
Power consumption: 5.4 W
Maximum power consumption: 6.22 W
Current consumption: 451 mA (max. 519 mA)
Speed: 3100 rpm
Airflow: 108.2 CFM (183.8 m³/h)
Static pressure: 7.11 mmHO
Noise level: 44.5 dB(A)
Bearings: ball bearing
Lifespan: 70,000 hours at 40°C
Dimensions: 120 × 120 × 25 mm
Mounting holes: 4×, diameter 4.3 mm
Connection: 2pin JST-PH connector (2.0mm pitch)
Weight: 157g
Protection: IP20
Operating temperature: 10 to +70 °C
Storage temperature: 40 to +70 °C
Functions and features (control, compatibility, benefits of use)
Brushless DC motor for stable and efficient operation
Ball bearings ensure long service life even in continuous operation
Power supply reverse polarity protection
Automatic restart when the rotor is blocked
Direction of rotation: counterclockwise when viewed from the front of the fan
Standard 120mm size allows for easy replacement with other fans of the same size
Ideal for (typical uses)
Cooling of switchboards and industrial electronics
Power supplies, voltage converters and power modules
Server cabinets and network equipment
Laboratory and measuring equipment
LED applications with higher thermal load
Package contents
1× axial fan SUNON EEC0251B1-000C-A99
Why choose this product (summary of main benefits)
Very high airflow while maintaining compact dimensions
Long service life of 70,000 hours thanks to ball bearings
Reliable operation with integrated protection functions
Quality and proven reliability of the SUNON brand
Easy integration into professional and industrial equipment
