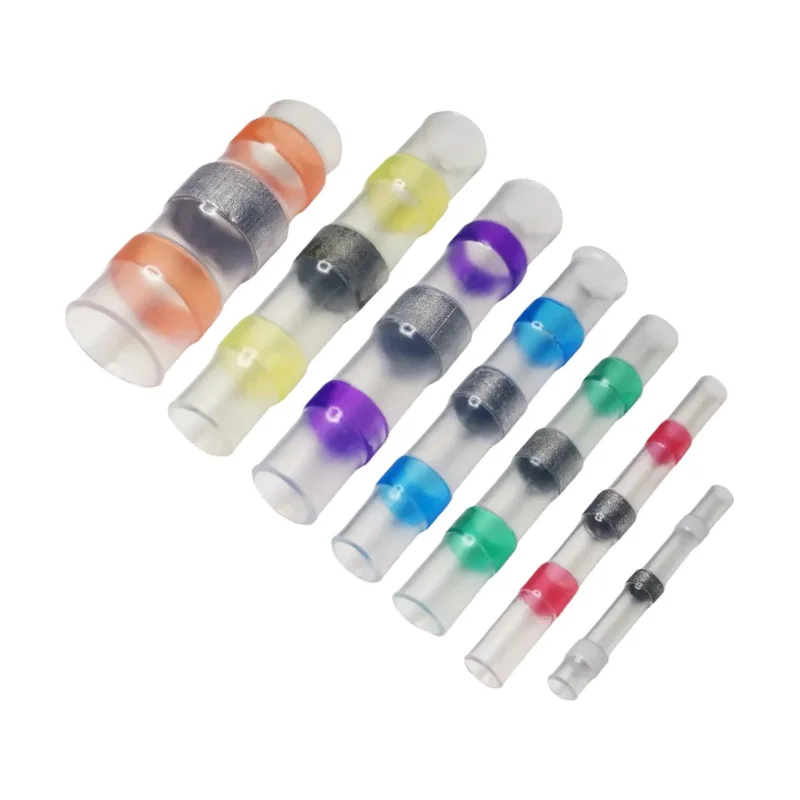

Description
Shrink ratio: 2:1
Material: Nylon
Solder: lead-free tin
| Color | Model designation | Conductor cross-section | A (min.) | L (min.) | B (min.) | B + C (max.) | C (min.) |
| White | SST-11 | 0.25-0.35mm 2 | 1.7mm | 26 mm | 1.0mm | 1.7mm | 0.76mm |
| Red | SST-21 | 0.50-1.00mm 2 | 2.7mm | 40mm | 1.4mm | 2.7mm | 1.2 mm |
| Green | SST-51 | 0.75-1.50mm 2 | 3.5 mm | 40mm | 1.5 mm | 3.5 mm | 1.3 mm |
| Blue | SST-31 | 1.50-2.50mm 2 | 4.5mm | 40mm | 2.3 mm | 4.5mm | 2.0mm |
| purple | SST-61 | 2.50-4.00mm 2 | 5.5mm | 40mm | 2.5mm | 5.5mm | 2.2mm |
| Yellow | SST-41 | 4.00-6.00mm 2 | 6.0mm | 40mm | 3.7mm | 6.0mm | 3.4mm |
| Orange | SST-71 | 6.00-10.00mm 2 | 7.3mm | 30mm | 3.8mm | 7.3mm | 3.4mm |
