Description

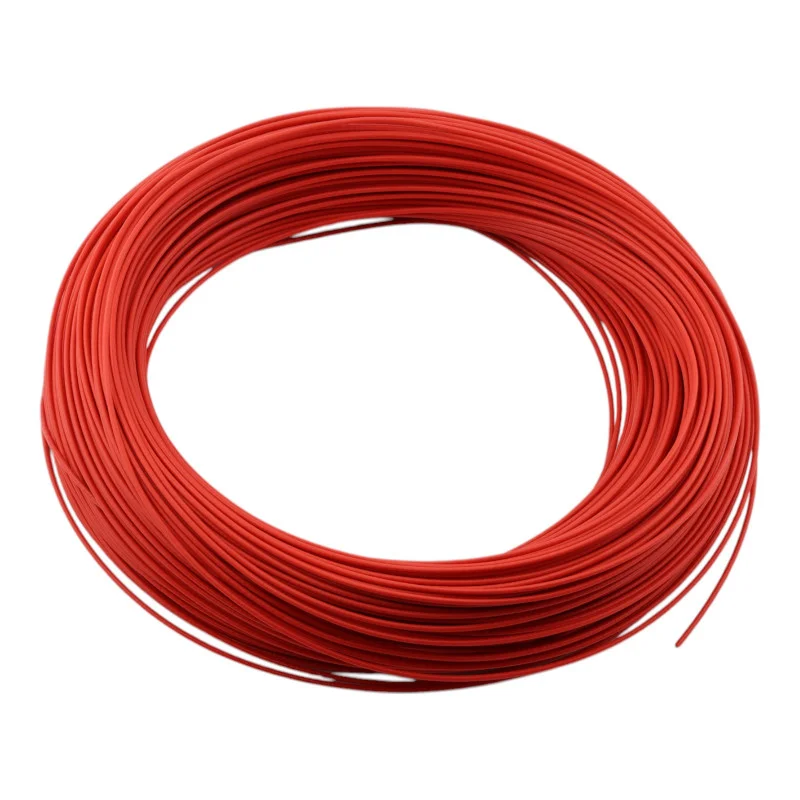

The 1.4 mm diameter heating cable is designed for low voltage DC applications in the range of 548 V DC, where uniform heating, mechanical flexibility and durable insulation are required. It is suitable for integration into heating elements, frost protection, temperature control of smaller areas as well as for construction and service use in technical equipment.
Technical specifications
Product type: resistance heating cable
Cable outer diameter: 1.4 mm
Power supply: 5-48V DC
Insulation: fluoropolymer, Teflon type
Heating element material: nickel-chromium and copper
Available resistance options: 0.3 / 1 / 1.4 / 3 / 4 / 5 / 8 / 10 / 15 / 20 / 25 / 40 Ohm/m
Insulation temperature resistance: up to 200 °C
Maximum long-term temperature: up to 250 °C
Cable type: round
Sales unit: 1 meter
Functions and features
Designed to create resistance heating when powered by DC voltage
Teflon insulation ensures good thermal, chemical and electrical resistance
Resistance to oils, acids and alkalis
Insulation with good resistance to aging and electric arc
Flexible design suitable for integration into smaller devices and assemblies
Possibility to choose resistance per meter according to the required power and cable length
The power depends on the supply voltage, the selected length and resistance of the cable
Ideal for
Seat and steering wheel heating
Refrigerators, air conditioning and defrosting applications
Heated insoles, footwear, clothing and textile heating elements
Electric blankets, pads and smaller heating surfaces
Pipeline protection against freezing
Heating of windows and smaller structural units
Incubators, breeding facilities and selected medical facilities
Special low-voltage heating applications in instrumentation
Package contents
1x heating cable in the selected resistance variant
The delivery length corresponds to the ordered quantity in meters.
Why choose this product?
Wide power supply range for low voltage DC applications
Large selection of resistor variants for designing the required power
Compact 1.4mm diameter for easy integration
Durable fluoropolymer insulation for operation in more demanding environments
Suitable solution for technical, development and service use
Installation and operating instructions
When designing, it is necessary to correctly select the resistance per meter, cable length and supply voltage.
Approximate power calculation: P = U × U / (L × R), where U is the voltage, L is the cable length and R is the resistance in Ohm/m
Install the cable in such a way as to ensure even heat dissipation into the heated material.
During operation, avoid mechanical damage to the insulation and local overheating.
For stable and safe operation, we recommend using a suitable power supply and regulation.
Safety notice
Designed for low voltage DC power supply 5-48 V DC
Do not connect the cable to the 230 V AC mains voltage.
Before commissioning, verify the electrical parameters of the entire assembly
The resulting surface temperature depends on the power, installation method and heat dissipation conditions.
The product is intended as a component for incorporation into a device or technical unit.
