Description

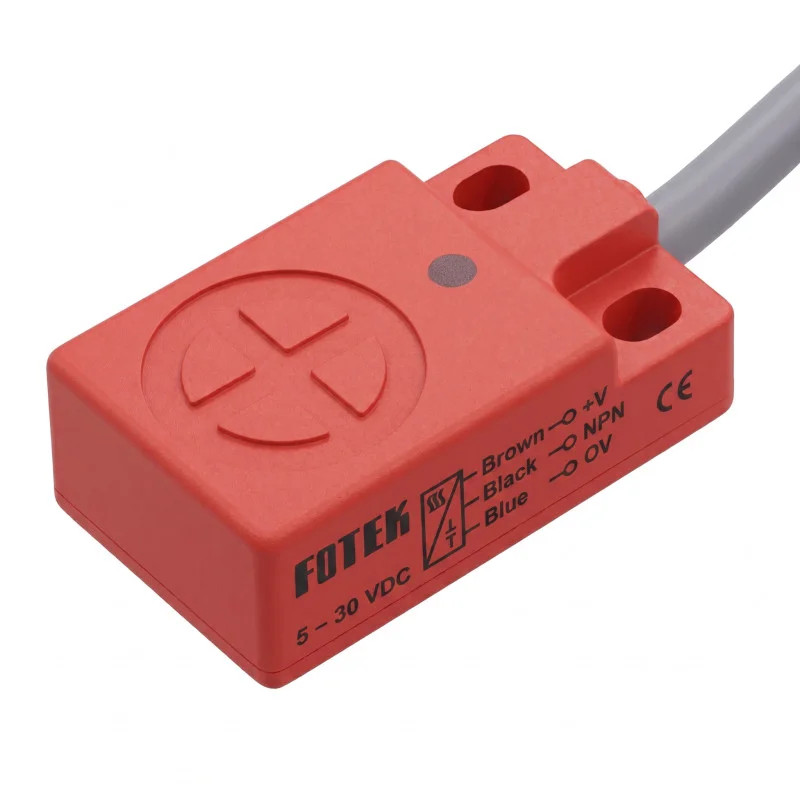

The PS SP-05N series inductive proximity sensor is a non-contact sensor for detecting metal objects in industrial and automation applications. The board design with mounting holes allows for a firm attachment to the structure of the machine or device. The sensor is designed for DC power supply and uses an NPN output in the NO version.
Technical specifications
Product line: PS Series Inductive Proximity Sensor
Model: SP-05N
Design type: plate type, plate design
Sensing principle: inductive proximity sensor
Output method: NPN
Output state: NO
Sensing distance: 5.0 mm
Mounting method: flush
Scanning direction: vertical
Supply voltage: 10 to 30 VDC
Maximum output current: 150 mA
Maximum current consumption: 10 mA
Residual voltage: less than 0.1 V
Leakage current: less than 0.8 mA
Hysteresis: less than 10% of the sensing distance
Temperature drift: less than 10 µm per °C
Voltage drift: less than 1 µm per V
Protection circuit: short circuit and reverse polarity protection
Working temperature: -25 °C to +80 °C
Operating humidity: 35% to 95% RH
Protection: IP67
Response frequency: 800 Hz
Body dimensions: 30.5 x 17.5 x 10.0 mm
Cable length: 200 cm
Connection: cable outlet
Functions and features
Non-contact detection of metal objects without mechanical wear of the sensing part.
Board housing with mounting holes for fixed mounting.
Recessed sensing design for installation in a metal environment according to the manufacturer’s installation conditions.
Three-wire DC connection with NPN output.
IP67 rated design for use in industrial environments.
Ideal for
Detection of the position of metal parts of machines and mechanisms.
Sensing the presence of metal parts in automation lines.
Industrial control systems, fixtures and production equipment.
Applications where a compact, flat sensor design is required.
Package contents
Inductive proximity sensor PS series SP-05N with cable
Why choose this product?
Clearly defined electrical and mechanical parameters for DC applications.
Compact panel design for installation in limited space.
NPN NO output suitable for common industrial control inputs.
Short circuit and reverse polarity protection increases wiring durability.
IP67 protection allows for use in more demanding operating environments.
Installation and operating instructions
When connecting, follow the wiring diagram for the DC version: brown wire for positive power supply, blue wire for negative pole, black wire as output.
Perform the installation taking into account the recessed design of the sensor and the sensing direction.
The power supply and the load input circuit must match the sensor parameters.
Before commissioning, verify correct polarity and output connection.
Safety notice
Incorrect wiring may cause damage to the sensor or connected equipment.
Disconnect the power supply during assembly and connection.
Do not exceed the permitted supply voltage and maximum output current.
Installation in industrial equipment should be carried out by a person with knowledge of the relevant electrical wiring.
Do not subject the cable to excessive tension, kinking or mechanical damage.
