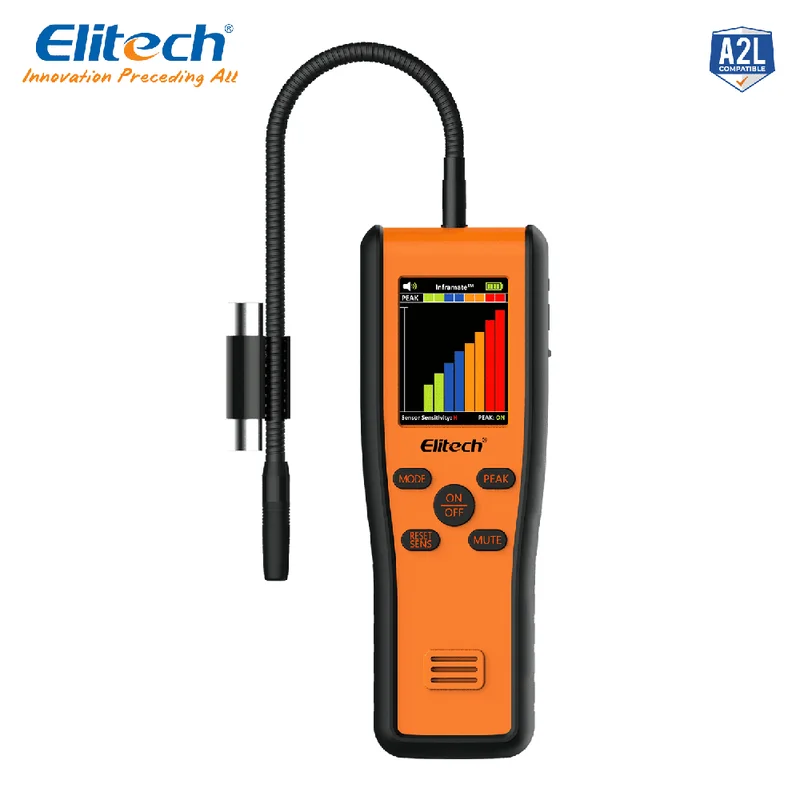

Infrared Leak Detector for R410 R32 R134 Gas Elitech INFRAMATE-S-Spedizione veloce

Description

Infrared leak detector for R410 R32 R134 gas Elitech INFRAMATE-S Description:

The Elitech infrared leak detector is a professional instrument designed for fast and precise detection of refrigerant gas leaks in HVAC/R and air conditioning systems. Based on next-generation infrared sensor technology, it ensures superior performance compared with traditional corona or heated diode systems, with stable sensitivity over time and long sensor operating life (up to 10 years).
Ideal for refrigeration technicians, HVAC maintenance professionals and cooling specialists, this instrument makes it possible to detect even micro refrigerant leaks, making system inspection and maintenance more efficient.

Features:

Infrared sensor technology Precise and reliable detection of refrigerant gases without sensor degradation over time.
High detection sensitivity Ability to identify even very small leaks, with selectable sensitivity levels.
Intuitive TFT LCD display Clear display of leak levels, selected sensitivity, battery status and other parameters.
Extended operating life High-capacity integrated battery allows up to 8 hours of continuous use.
Peak capture function Keeps the highest detected leak value stored during the test.
Audio/visual alarm Signals leaks with visual and sound indicators for efficient localization.
Ergonomic and robust Design intended for professional use with comfortable grip and durable construction.

Specifications:

Detector type: Portable infrared (IR) refrigerant leak detector

Refrigerant detection: CFC, HFC, HCFC, HFO-1234YF and halogenated refrigerants (including R410A, R32, R134a)

Detection sensitivity:

High level: 0.1 oz/year (

Medium level: 0.25 oz/year (7 g/year)

Low level: 0.50 oz/year (14 g/year)

Response time: < 1 second

Warm-up time: about 30 s with self-calibration

Continuous operating time: up to about 8 hours after full charge

Low battery indication: automatic visual warning with about 1 hour of remaining autonomy

Automatic shut-off: after 10 minutes of inactivity

Operating temperature range: 0 °C ~ 50 °C (32 °F ~ 122 °F) at max 75 % RH

Alarm mode: Visual (TFT LCD) and acoustic alarm

Overall dimensions: about 201 × 86 × 38 mm

Probe length: about 445 mm

Internal battery: Li-ion 3000 mA/h

Certifications and compliance: SAE-J2913, SAE-J1627, SAE-J2791, CE, EN-14624

Sensor service life: infrared technology with stable accuracy guaranteed up to 10 years

Product code: INFRAMATE-S
