Description
The green laser module with a wavelength of 520 nm is supplied as a complete set ready for immediate use. Thanks to the very good visibility of the green laser, stable power regulation and active cooling, it is suitable for industrial applications, measuring systems, alignment, marking and laboratory use.
Technical specifications
Wavelength: 520 nm (green)
Light pattern: line (110°)
Available power variants: 80 mW, 135 mW, 300 mW, 600 mW, 800 mW, 1000 mW
Operating mode: CW
Power Management: APC
Operating voltage: 12-24 V DC
Housing material: aluminum
Optics: glass lens
Laser module dimensions: 40 × 40 × 92 mm
Cable length: 100 cm
Connector: DC 5.5 x 2.1mm
Cooling: active (fan)
Operating temperature: -10°C to +50°C
Degree of protection: IP20
Lifetime (MTTF): more than 10,000 hours
Functions and features
Highly visible 520 nm green laser suitable even for bright environments
Stable optical performance thanks to APC regulation
Continuous operation in CW mode without pulse or Q-switched control
Active cooling ensures long-term stable operation
Adjustable focus for point, line or cross
Robust aluminum housing for industrial use
Ideal for
Measuring and balancing systems
Industrial marking and optical signaling
Laboratory and testing equipment
Production lines and automation
Technical and development projects

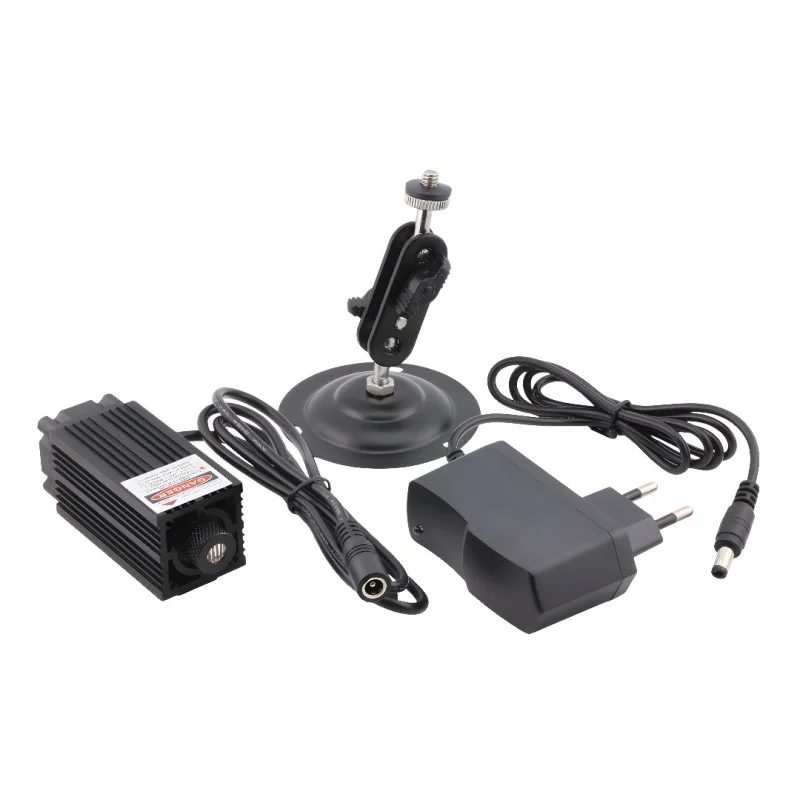

Package contents
520 nm laser module
Adjustable holder (stand)
Power adapter
Why choose this product?
Complete set ready for immediate use
Very good visibility of the 520 nm green laser
Stable performance thanks to APC regulation
Active fan cooling
Suitable solution for professional and industrial applications
