Description

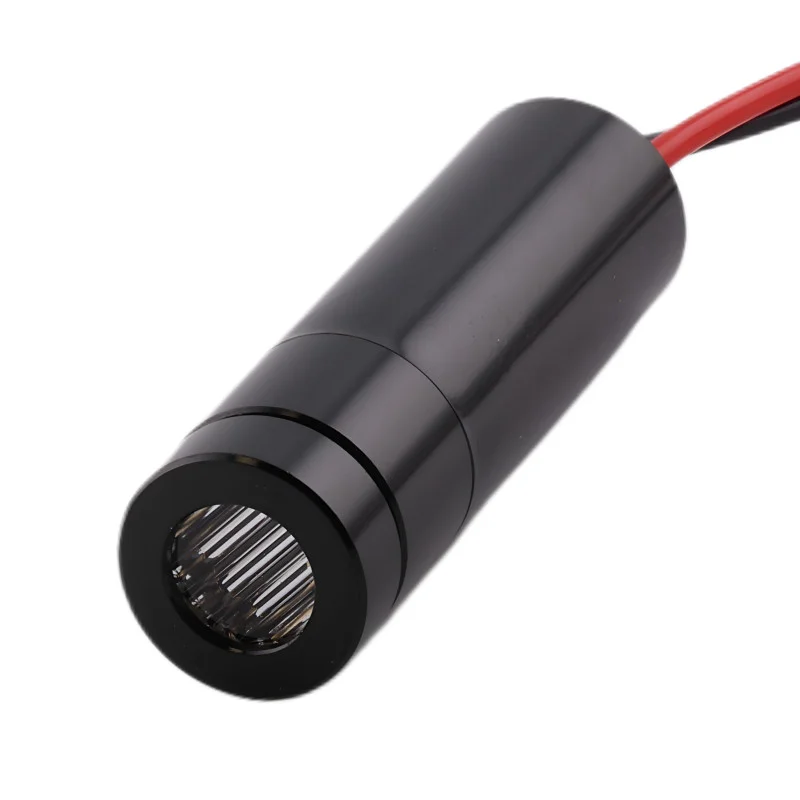

The compact 1mW industrial laser module with a wavelength of 650nm is ideal for precise aiming, marking or alignment in applications where a fine red laser beam is required. The module offers adjustable focus and a line or cross pattern, making it suitable for assembly and inspection systems, CNC machines or laboratory measurements.
Technical specifications
Dimensions: Ø12×45 mm (built-in PCB board)
Housing material: anodized aluminum (blackening)
Lens: PMMA
Wavelength: 650 nm (red light)
Output power: 1 mW (typically 0.70.9 mW)
Projection pattern: 110° line
Operating mode: APC/ACC (automatic power control)
Supply voltage: 3-5 V DC
Connector: 1m cable with DC connector 5.5×2.1 mm
Operating temperature: 10 °C to +50 °C
Storage temperature: 40 °C to +85 °C
Mean time between failures (MTBF): 8,000 hours
Functions and features
Adjustable focus allows line size to be adjusted according to distance and surface.
The integrated APC/ACC circuit ensures stable performance even when power supply fluctuates.
The aluminum body guarantees effective heat dissipation and long service life.
Can be mounted using a standard or 3-axis mount (optional accessory).
Ideal for
Industrial and laboratory measurements
Machine and CNC applications
Alignment and positioning systems
Laser pointers and reference lines
Package contents
Laser module 650nm, 1mW, Ø12×45mm
Why choose this product?
Stable performance and long service life thanks to high-quality construction
Safe, low-power Class II laser suitable for precision applications
Compact dimensions and easy integration into devices
Adjustable line or cross pattern for versatile use
