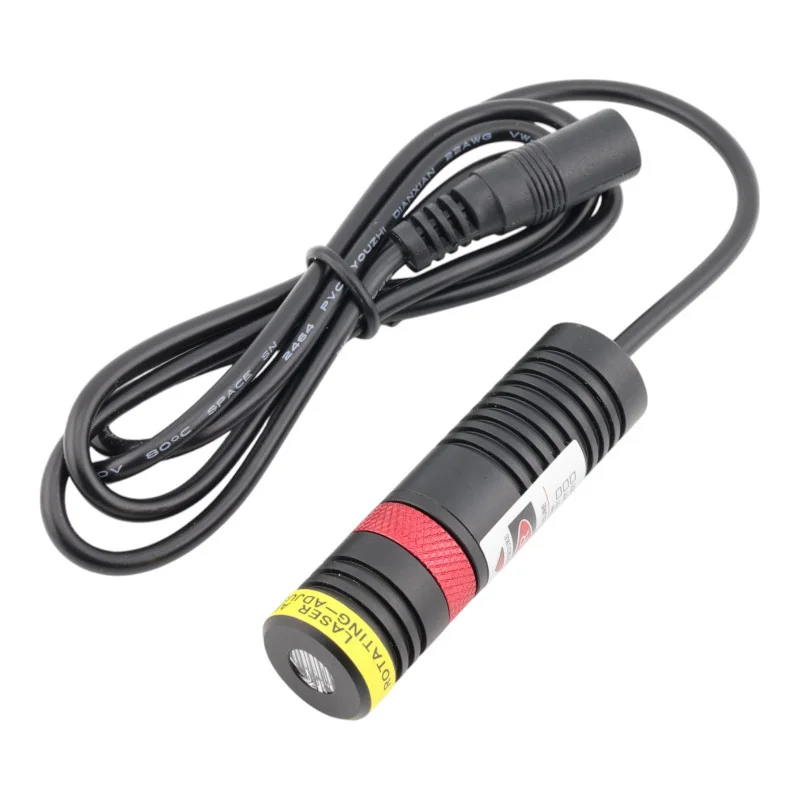

Description
The 635 nm red laser module is suitable for applications where a clearly visible and precisely defined point is required. Thanks to its compact aluminum housing, stable power regulation and simple 5 V DC power supply, it is suitable for measurement, alignment, industrial and laboratory use.
Technical specifications
Wavelength: 635 nm (red)
Light pattern: spot
Available power variants and real optical performance:
10mW (7.58.5mW)
30mW (1824mW)
50mW (3845mW)
100mW (7595mW)
150mW (100120mW)
200mW (130150mW)
Operating voltage: 5V DC
Control mode: APC
Housing material: aluminum
Optics: PMMA
Dimensions: Ø18 × 65 mm
Cable length: 100 cm
Connector: DC 5.5 x 2.1mm
Operating temperature: -10°C to +50°C
Storage temperature: -40°C to +85°C
Degree of protection: IP20
Lifespan: more than 8,000 hours
Functions and features
Highly visible red dot at a wavelength of 635 nm
Stable output power thanks to APC regulation
Durable aluminum housing for long-term operation
Simple connection via DC connector
Ideal for
Measuring and balancing technology
Optical signaling in industry
Laboratory and development facilities
Technical and creative projects
Package contents
635 nm laser module with cable and DC connector
Why choose this product?
Simply stated real performance for each variant
Wide range of performances for various applications
Compact dimensions and easy integration
Stable operation and long service life
