Description

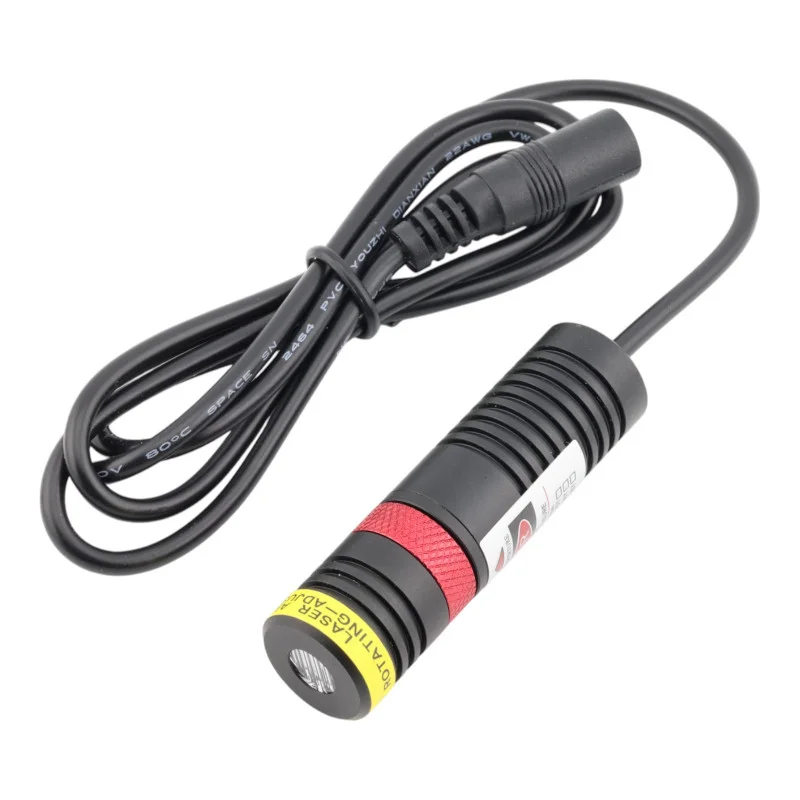

The red 650nm laser module with a circle and cross projection is designed for aiming, positioning and optical guidance applications in industry, measurement technology and integration into devices. The module uses DOE optics with adjustable focus and is powered by 5V DC. The metal aluminum housing supports heat dissipation and ensures mechanical resistance during normal operation.
Technical specifications
Product type: laser module with circle projection with cross
Laser color: red
Wavelength: 650nm
Case dimensions: Ø18 x 65mm
Housing material: aluminum
Lens type: PMMA
Optics type: DOE
Focus: adjustable
Operating mode: APC/ACC
Supply voltage: 5V DC
Connection: 1m cable with DC connector 5.5/2.1mm
Working temperature: -10 to +50°C
Storage temperature: -40 to +85°C
Mean time to failure: more than 8000 hours
Real optical power table
| Rated power | Real optical performance |
| 10mW | 7.5 to 8.5 mW |
| 30mW | 18 to 24mW |
| 50mW | 38 to 45mW |
| 100mW | 75 to 95 mW |
| 150mW | 100 to 120 mW |
| 200mW | 130 to 150 mW |
Functions and features
Circle projection with crosshairs for precise optical aiming
650nm red laser suitable for general visual guidance and indication
DOE optics for creating a defined pattern
Adjustable focus to adapt projection to specific distance and application
Aluminum body for better thermal stability and mechanical resistance
5V DC power supply for easy integration into devices and test benches
APC and ACC operating modes for corresponding laser diode control
Ideal for
Industrial surveying and positioning
Production line guidance systems
Optical marking of reference points
Integration into measuring and control devices
Laboratory and development applications
Adjusting, setting up and checking geometry
Package contents
1x laser module red 650nm, circle with cross
1x connection cable 1m with DC connector 5.5/2.1mm
Why choose this product?
Combination of compact dimensions and robust metal design
Clearly defined circle and cross projection pattern for technical applications
Clearly specified nominal and real optical power values
Standard 5V DC power supply and ready-made cable connection
Suitable solution for integration into industrial, laboratory and development systems
Installation and operating instructions
During installation, ensure a firm mechanical attachment of the module without vibration transmission.
For proper operation, it is necessary to use a stabilized 5V DC power supply.
After installation, adjust the focus according to the desired working distance and the size of the projected image.
During long-term operation, we recommend ensuring adequate heat dissipation according to the selected power variant.
Use the module within the specified operating temperature range.
Safety notice
Laser radiation can be dangerous to your eyesight.
Do not look directly into the output beam or at its reflection from shiny surfaces.
When integrating into a device, we recommend using appropriate protective measures corresponding to the module’s power variant.
The product is not intended for use without appropriate technical assessment in applications where failure could result in a risk to health or property.
