Description

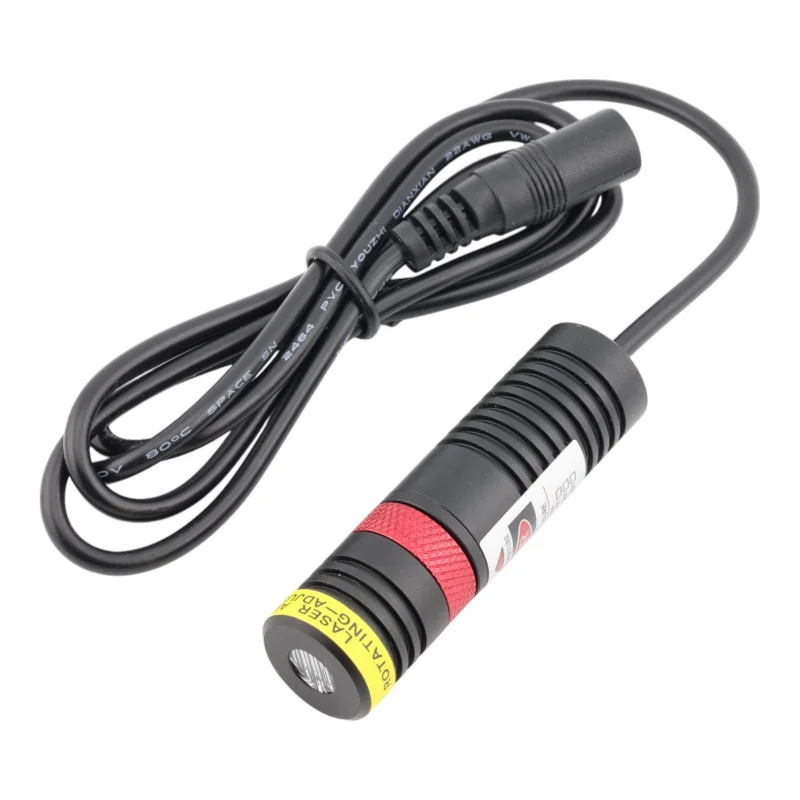

The 660nm red laser module with a 10×10 optical grating is an ideal choice for precise projections in industrial applications, aiming systems, measurement technology and creative visual projects. It provides a bright, stable and sharply defined light pattern suitable for technical and laboratory use.
Technical specifications
Wavelength: 660nm (red)
Optics type: 10×10 point diffraction grating
Working voltage: 5V DC
Power variants: 10mW, 30mW, 50mW, 100mW, 150mW, 200mW
Protection: IP20
Operating temperature: -10 to +50 °C
Connector: 5.5×2.1mm DC
Cable length: 100 cm
Module dimensions: Ø18×65 mm
Lifespan: 8,000 hours
Weight: 85g
Functions and features
Bright red 660nm projection suitable for technical imaging and alignment systems.
Stable 10×10 point dispersion ensured by diffractive optics (DOE).
Compact metal body for efficient cooling and long life.
Easy power supply using standard 5V DC input.
Suitable for continuous operation in industrial applications.
Ideal for
Measuring and aiming systems
Industrial automation
Laboratory optical experiments
Specialized design tasks
Creative lighting applications and visual effects
Package contents
1× 660nm laser module with 10×10 grid
Why choose this product?
Stable and highly visible red beam of 660 nm.
10×10 diffraction grating for a clear and regular raster.
Industrial design with long service life and high reliability.
Compact dimensions and universal 5V DC power supply.
Suitable for precise technical systems and visual projects.
