Description

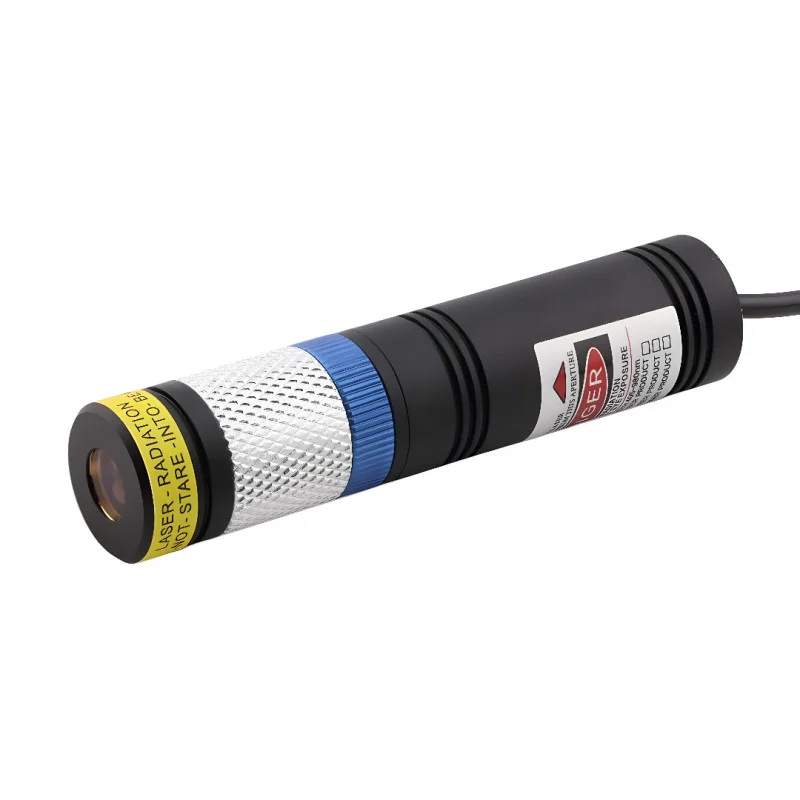

Waterproof laser module with a blue-violet beam with a wavelength of 405 nm designed for precise line projection. The short wavelength provides a very sharp and contrasty projection, which is particularly suitable for technical, laboratory and industrial applications. Thanks to the IP67 protection, the module is protected against dust and water and can be used even in demanding operating conditions. Glass optics allow precise focusing of the line width with the possibility of mechanical locking.
Technical specifications
Wavelength: 405 nm (violet)
Beam shape: line
Beam angle: 110°
Optical power (variants): 10 mW, 30 mW, 50 mW, 100 mW, 150 mW, 200 mW
Real output power:
10mW (7.58.5mW)
30mW (1824mW)
50mW (3845mW)
100mW (7595mW)
150mW (100120mW)
200mW (130150mW)
Operating mode: CW (continuous light)
Current control: APC
Supply voltage: 5V DC
Operating current: < 500 mA
Connector type: DC 5.5×2.1mm/5.5×2.5mm
Cable length: 100 cm
Housing material: aluminum
Optics material: glass
Module dimensions: diameter 20 mm × length 90 mm
Weight: 65g
Protection: IP67
Operating temperature: -10°C to +50°C
Storage temperature: -40°C to +85°C
Mean Time to Failure (MTTF):> 8,000 hours
Functions and features
Waterproof design with IP67 protection
Short wavelength 405 nm for very sharp projection
Focusable glass optical lens
Focus lock using a locking ring
Stable output power thanks to APC/ACC regulation
Adjustable projection line width
Robust aluminum housing with effective heat dissipation
Ideal for
Laser positioning with high precision requirements
Industrial and laboratory applications
Measurement and calibration systems
Technical marking and control processes
Special applications requiring short wavelength
Outdoor installations exposed to moisture and dust
Package contents
Waterproof 405nm laser module
Why choose this product?
IP67 protection for operation in harsh environments
Very sharp and contrasting line projection
Precise mechanical focusing
Stable operation and long service life
Professional aluminum construction
Wide range of performance options
