Description

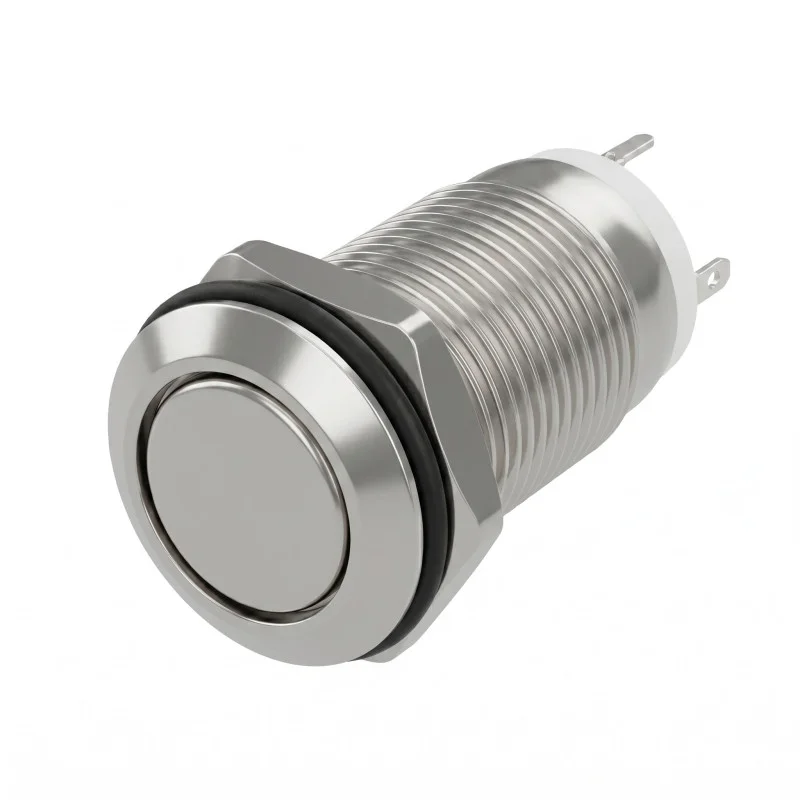

The latching push button switch is designed for panel mounting and switching electrical circuits in device control elements. Thanks to the latching function, it remains in the on or off position after being pressed, which is suitable for permanent on and off control.
Technical specifications
Product type: latching push button switch
Design color: silver
Mounting diameter: 10 mm
Switch diameter: 13 mm
Maximum voltage and current: 250 V AC, 3 A
Protection degree: IP65
Dimensions: 13.6 x 13.6 x 21.5 mm
Design for panel mounting
Threaded body for fastening in the mounting hole
Functions and features
Latching mechanism for maintaining the position after pressing
Push button control for direct switching of the electrical circuit
Compact design suitable for installation into panels and device covers
IP65 protection degree ensures protection against dust and against water jets under conditions corresponding to this protection class
Silver circular design with a flat button face
Ideal for
Control panels of electrical devices
Turning on and off low-power electrical circuits within the limits of the specified parameters
Integration into instrument cases, covers and panels
Applications where the latching function of the button is required
Package contents
1x latching push button switch
Why choose this product
The specified parameters 250 V AC and 3 A allow use for corresponding electrical circuits without exceeding the nominal load
The mounting diameter of 10 mm facilitates integration into panels with a corresponding hole
The latching control is suitable for functions where the switch should remain in the selected position
The IP65 protection degree supports use in environments with increased demands for protection against dust and water
Installation and operation instructions
Install the switch only into a panel with a corresponding mounting hole.
When connecting, do not exceed the specified maximum electrical parameters of 250 V AC and 3 A.
Connect the contacts so that there is no mechanical stress on the wires or terminals.
After mounting, verify the firm seating of the switch in the panel and the correct function of the latching.
Safety warnings
The product is an electrical component designed for connection into an electrical circuit.
When working with 250 V AC voltage, there is a risk of electric shock, short circuit, overheating or damage to the device.
Mounting and connection may only be performed by a person with the appropriate professional qualification.
Perform all wiring with the power supply disconnected.
Do not use the switch outside the specified electrical load and outside the conditions corresponding to IP65 protection degree.
