Description
The LED indicator with integrated buzzer is designed for optical and acoustic signaling of statuses in switchboards, control panels and industrial equipment. It combines a bright LED light with an intermittent audio tone, making the device status easily recognizable even in noisier environments.
Technical specifications
Operating voltage: 12 V DC, 24 V DC, 110 V AC, 120 V AC, 220 V AC, 230 V AC (depending on the selected variant)
Consumption: 1 W
Brightness: 500 cd
LED lifespan: 30,000 hours
Buzzer volume (at a distance of 10 cm): 85 dB
Tone frequency: 2500 Hz
Audible signal: intermittent tone
Front diameter: 29 mm
Body length: 63 mm
Mounting hole diameter: 22 mm
Weight: 45g
Protection: IP40
Terminals: screw terminal block
Functions and features
Combination of optical and acoustic signaling in one element
Integrated buzzer with clearly audible intermittent tone
LED technology with long life and low consumption
Easy panel mounting using a Ø 22 mm hole
Clear and safe connection of wires using a terminal block
Suitable for both DC and AC power supply depending on the variant
Ideal for
Industrial switchboards and control panels
Signaling of fault and warning conditions
Automation technology and production lines
Machinery and technological units
Control and monitoring systems
Package contents

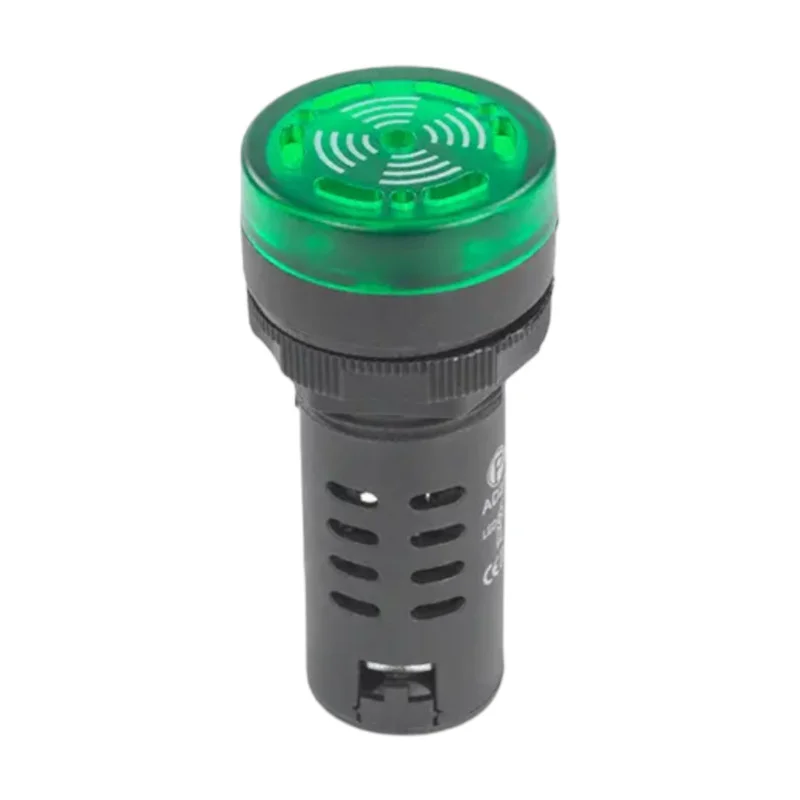

LED indicator with buzzer AD16-22SM
Why choose this product?
Reliable signaling combining light and sound
Good audibility thanks to intermittent tone
Universal use thanks to a wide range of voltage options
Quick installation and easy electrical connection
Compact dimensions suitable for standard Ø 22 mm panels
