Description
The LED indicator with integrated buzzer in IP65 protection is designed for optical and acoustic signaling of states in industrial switchboards, control panels and machinery. Increased resistance to dust and splash water allows use even in more demanding industrial environments. The combination of a bright LED and an intermittent sound tone ensures immediate and easily recognizable signaling.
Technical specifications
Operating voltage: 12 V DC, 24 V DC, 220 V AC, 230 V AC (depending on the selected variant)
Consumption: 1 W
Brightness: 500 cd
LED lifespan: 30,000 hours
Buzzer volume (at a distance of 10 cm): 85 dB
Tone frequency: 2500 Hz
Audible signal: intermittent tone
Front diameter: 29 mm
Body length: 66 mm
Mounting hole diameter: 22 mm
Weight: 46g
Protection: IP65
Terminals: screw terminal block
Functions and features
Combination of optical and acoustic signaling in one element
Integrated buzzer with clearly audible intermittent tone
Sealed front design for protection against dust and splash water
LED technology with long life and low consumption
Easy panel mounting using a Ø 22 mm hole
Safe and clear connection of wires using a terminal block
Suitable for both DC and AC power supply depending on the variant
Ideal for
Industrial switchboards and control panels
Machinery exposed to dust or moisture
Warning and fault signaling
Automation technology and production lines
Control and monitoring systems in more demanding environments
Package contents

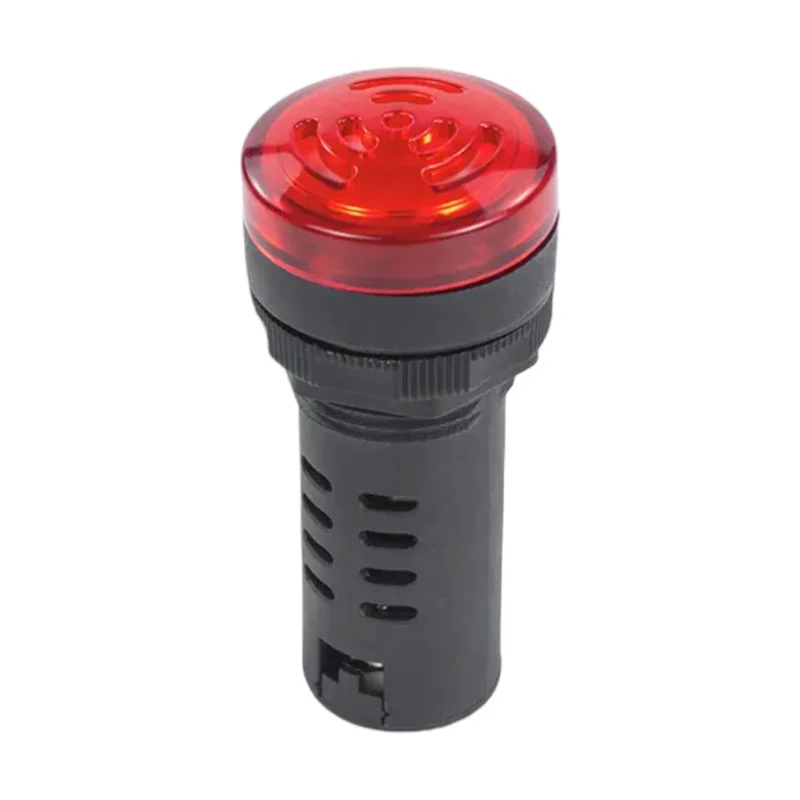

LED indicator with buzzer AD16-22SM, IP65
Why choose this product?
Increased durability thanks to IP65 protection
Bright light and clear sound signaling
Wide range of voltage options
Easy installation in a standard Ø 22 mm hole
Reliable solution for industrial and technical applications
